Summit BIM182OSADA 18" Wide Outdoor Clear Icemaker| ADA

The Summit BIM182OSADA is an 18" wide clear icemaker that is ADA compliant. With its specialized features and optimal size, this icemaker is perfect for outdoor spaces, providing accessible and efficient ice-making capabilities.

Unique 18" width lets you complete any outdoor bar with a large supply of long-lasting clear ice cubes

Summit brings proper convenience and streamlined luxury under the counter with built-in indoor and outdoor clear icemakers sized for 18-inch wide spaces in outdoor kitchens.

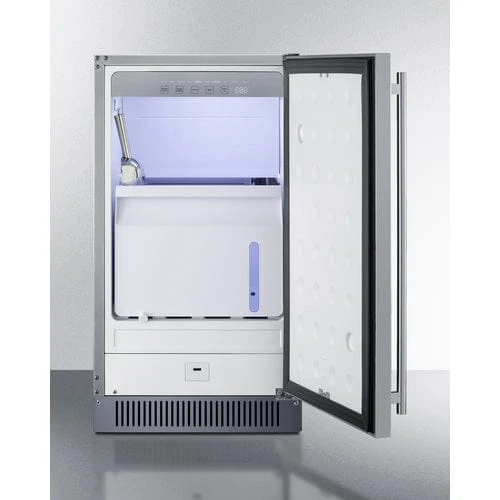

Sized just under 18 inches wide and 32.5 inches high, model BIM182OSADA features a front-breathing design for built-in installation underneath ADA-compliant counters. The height can also be raised to 34.75 inches to accommodate standard counters. We include a stainless steel kickplate extender to fill the gap. This model comes with a user-reversible door to best suit your setting. A pro-style handle is included. The complete stainless steel exterior and sealed rear is specially constructed to hold up to the outdoor elements.

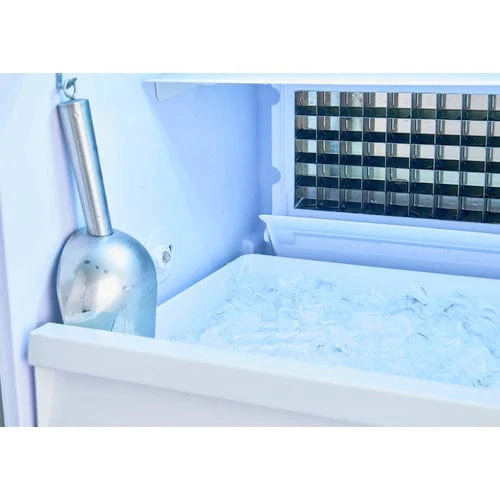

Inside, the BIM182OSADA shows can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with a drain hose, water hose, removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience.

With its unique size, user-friendly design, and large capacity, the BIM182OSADA is a great fit for various kitchen setups. For a weatherproof outdoor version in a standard height, see model BIM182OS. For a panel-ready version, see model BIM182ADAIF.

In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15-inch wide icemakers and a full assortment of matching 18-inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.

SPECIFICATIONS

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.5" (83 cm)
Nominal Width	18.0" (46 cm)
Width	17.75" (45 cm)
Depth	23.75" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	41.0" (104 cm)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	11.8
Voltage/Frequency	115 V AC/60 Hz
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101108179
Icemaker
Door Swing	RHD
Reversible	Yes
Height Adjustable	Yes
Drain Required	Yes
Daily Ice Production	60.0 lbs. (27 kg)
Ice Storage Capacity	33.0 lbs. (15 kg)
Ice Shape	Cube
Size of Cube	.87" x .87" . 87"
Number of Ice Cube Sizes	3
Interior Light	Yes
Refrigerant Type	R290
Refrigerant Amount	1.37 oz.
High Side PSI	330.0
Low Side PSI	160.0
Interior Height	18.75" (48 cm)
Interior Width	14.75" (37 cm)
Interior Depth	16.75" (43 cm)
Level Legs	4

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing

FEATURES

Outdoor 18" Wide Clear Icemaker

Built-in undercounter icemaker ideal for installation in outdoor kitchens

Weatherproof design

Durable stainless steel construction for safe installation in outdoor spaces

ADA-compliant

32.5" height allows easy installation under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your icemaker under the counter

60 lb. production capacity

Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day

Height adjustable

This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic

Built-in pump

Internal pump affords more flexibility in placing the unit

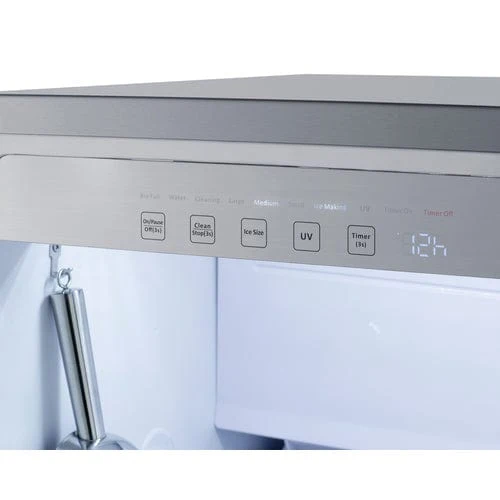

Touch control panel

Provides easy operation of the unit with indicator lights for each stage of the production process

Ice selection

Unit allows users to choose from small, medium, or large clear ice cubes

Automatic defrost

Reduced maintenance with auto defrost system

Interior light

LED lighting automatically illuminates when the door is opened

Interior UV light

Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

Ice scoop included

Interior wall includes brackets to hang for easy storage

Removable bin

Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin

Ice stays solid longer in this cold-protected bin

Reversible stainless steel door

User-reversible door swing for flexible placement

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

Pro style handle

Vertically mounted stainless steel handle completes the look

Sealed back

Space-saving design with easier cleanability

Right angle plug

Flat design offers added space savings by requiring no extra depth to plug the unit in

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
