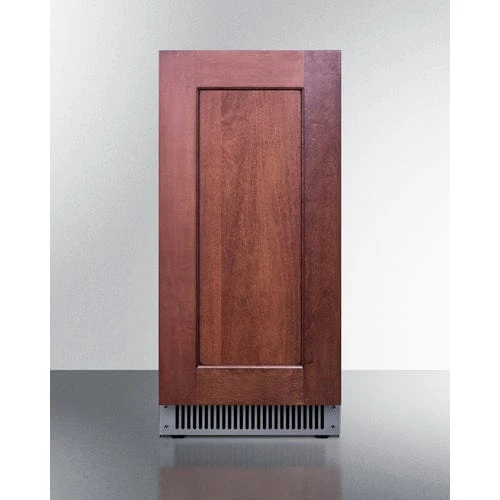

Summit BIM62ADAPNR | 68 lb. Clear Icemaker | ADA

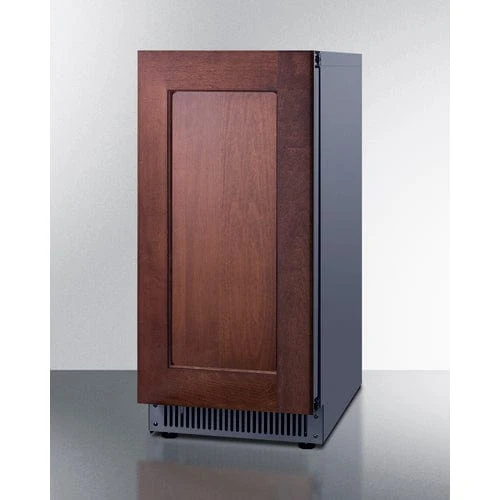

Panel-ready door lets you customize your icemaker to blend into your kitchen or bar design

Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for residential and commercial spaces.

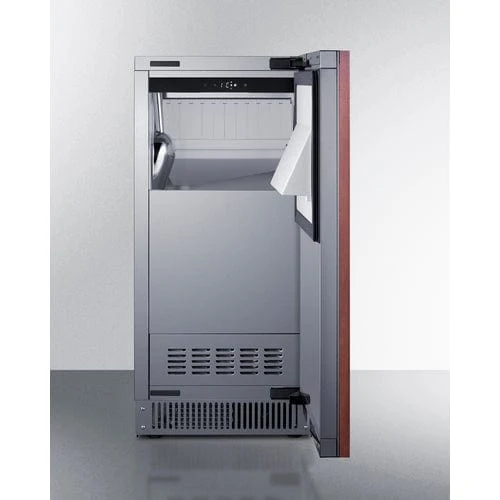

Model BIM62ADAPNR is a 15" wide panel-ready icemaker featuring an attractive and durable stainless steel exterior. This icemaker is sized at just 32" high to fit under ADA compliant counters, but the legs can be raised up to 34 1/4" high to accommodate taller spaces. This unit  ships with a sliding kickplate that helps fill the extra space if needed. The front-breathing design allows built-in installation under counters, the fully finished stainless steel cabinet allows freestanding use, and the sealed back and right-angle cord help ensure an easy fit. The reversible stainless steel door features a fully articulating European-style hinge to ensure a smoother opening. We include a 2-piece bracket kit included to allow easy installation of your own overlay panel to create your customer look. This icemaker is unbranded, allowing you to easily integrate it into any kitchen or bar.

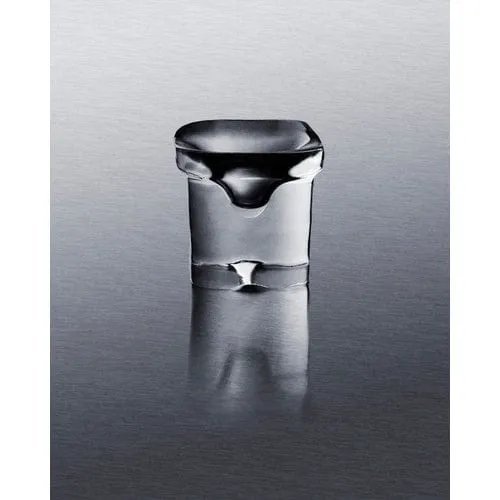

Inside, the BIM62ADAPNR produces up to 68 lbs. of clear, gourmet style top hat-shaped ice cubes daily. Top hat ice, often called gourmet ice, is a cylindrical cube with a slightly wider top resembling a miniature top hat or thimble. The distinct dense structure helps minimize dilution, keeping drinks colder for longer without watering them down. The uniform shape offers an elegant presentation, while its non-clumping design ensures easy dispensing. The size can be adjusted between three settings to best suit your taste. We include a steel ice scoop that can be hung inside for easy serving.

This icemaker features easy-to-use digital controls.  An indicator light alerts users to each step in the production process and when the bin is full. Frost-free operation eliminates the need to defrost the interior. Additional features include a temperature memory function, cleaning setting and alarm, and sabbath mode for periods of observances.

With clear gourmet ice that's gentle on glassware paired with efficient performance, the BIM62ADAPNR is ideal for both residential and commercial settings. For an outdoor version of this unit, see model BIM63OSADA.

SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Width	14.75" (37 cm)
Depth	22.75" (58 cm)
Depth with Panel	23.5" (60 cm)
Depth with door at 90°	38.13" (97 cm)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	6.0
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101156200
Icemaker
Door Swing	RHD
Reversible	Yes
Height Adjustable	Yes
Drain Required	Yes
Daily Ice Production	68.0 lbs. (31 kg)
Ice Storage Capacity	26.0 lbs. (12 kg)
Ice Shape	Top hat
Size of Cube	1 1/4" H x 1 1/8" W x 1 1/8" D
Number of Ice Cube Sizes	3
Refrigerant Type	R600a
Refrigerant Amount	1.58 oz.
Interior Height	19.75" (50 cm)
Interior Width	12.25" (31 cm)
Interior Depth	15.5" (39 cm)
Level Legs	4

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing

FEATURES

15" Wide Clear Icemaker

Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings

Custom style

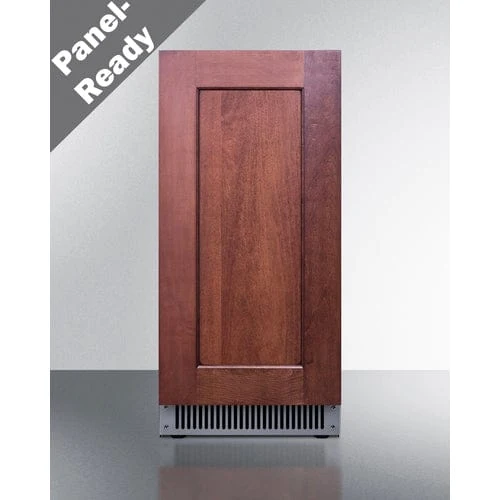

Panel-ready door trim lets you seamlessly integrate this unit into your kitchen or bar

Built-in undercounter design

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Easy panel installation with included 2-piece bracket kit

Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 28 1/4" H x 14 5/8" W)

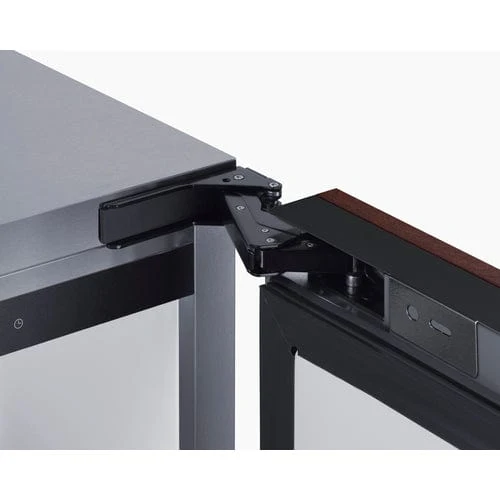

Fully articulating door hinge

European style hinge design ensures a flush fit and allows for a smoother opening

Versatile design

Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of a fully finished stainless steel door

ADA-compliant

32" height allows installation under lower ADA-compliant counters

Height adjustable

Leveling legs can be extended up to 2 1/4", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34 1/4" if used under higher cabinets

Built-in pump

Internal pump allows more flexibility in placing the unit

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

68 lb. production capacity

High capacity production to keep clear gourmet ice on hand

Gourmet top hat ice

Unique clear ice shape for an upscale presentation, while its dense structure means it melts slower, making it ideal for cocktails where dilution needs to be controlled

Unbranded exterior

Allows for seamless integration with other appliances

Touch controls

Provides easy operation of the unit with indicator lights for each stage of the production process

Ice size selection

Function allows users to choose from small, medium, or large clear ice cubes

Automatic defrost

No-frost operation for minimum user maintenance

Clean function

Clean mode allows you to periodically clean the system as needed with a neutral detergent

Cleaning alarm

Control panel light will flash 180 days after each cleaning cycle as a reminder to run that process

Memory function

Mode memory function allows the icemaker to its last setting in the event of a power interruption

Sabbath mode

Optional setting lets you disable the lighting and alarms during periods of religious observance

Ice scoop

Ice scoop included for added convenience, with an interior hook to keep it in place inside

Sealed back

Space-saving design with no exposed coils that offers easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Reversible door

User-reversible door swing for added flexibility to best accommodate your setting

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
