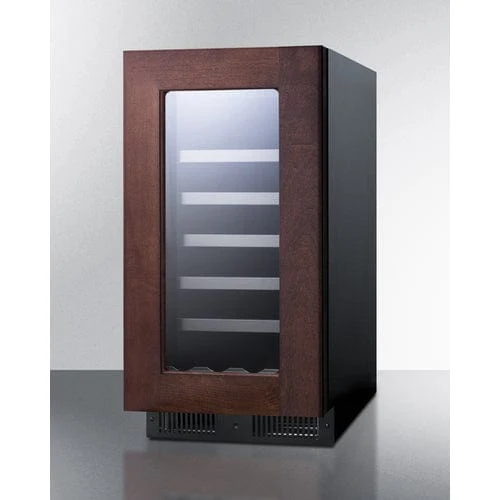

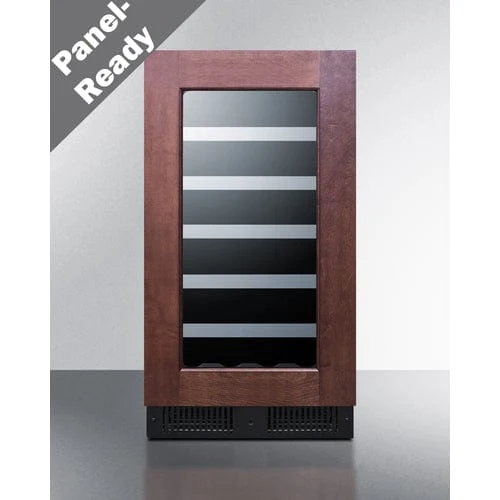

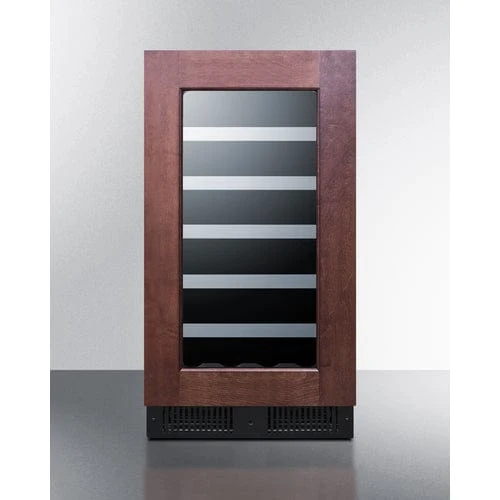

Summit CL18WCPNRLHD 18" Wide Built-In Wine Cellar

This 18" wide built-in wine cellar from Summit provides the perfect storage solution for your prized wine collection. With its sleek design and reliable temperature control, you can ensure that your wine will be preserved at its best quality. Its compact size also allows for convenient installation in any home or commercial space. Upgrade your wine storage with Summit.

Panel-ready door trim lets you create a custom look around the glass door

Summit manufactures deluxe undercounter appliances designed to bring modern luxury into the home.

The CL18WCPNRLHD is an 18" wide single zone wine cellar. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. This unit includes a fully articulating European-style hinge and 2-piece bracket kit that lets you easily install overlay panels over the door trim to create a custom look. Inside, white LED lighting located on the side walls complements the black interior to provide an attractive presentation of your stored collection. A lock is located in the kickplate for convenient security.

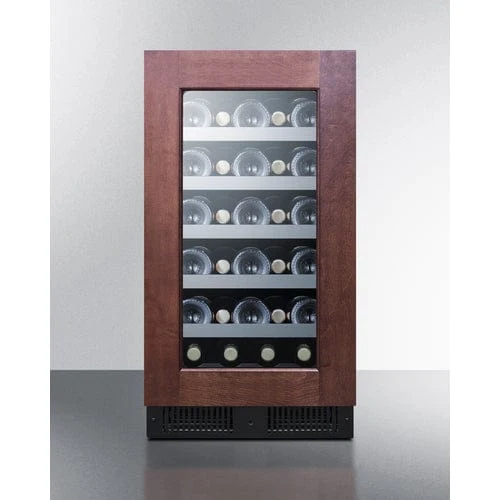

The CL18WCPNRLHD can store up to 29 Bordeaux or Burgundy style bottles. The black wooden shelves feature stainless steel trim. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature, offering added protection for your wine storage.

Uniquely styled and fully featured, the CL18WCPNRLHD brings true luxury to small kitchen and wet bar spaces. For a matching beverage center, see model CL181WBVPNR.

SPECIFICATIONS

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.75" (86 cm)
Nominal Width	18.0" (46 cm)
Width	17.5" (44 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.38" (64 cm)
Depth with door at 90°	39.63" (101 cm)
Capacity	2.9 cu.ft. (82 L)
Bottles	29 bottles
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	88.0 lbs. (40 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101145631
Wine Cellar
Number of Zones	1
Door Swing	LHD
Reversible	No
Adjustable Shelves	Yes
Shelf Type	Wood
Shelf Qty	5
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.64 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	23.0" (58 cm)
Interior Width 1	12.25" (31 cm)
Interior Depth 1	17.5" (44 cm)
Compressor Step Height	4.5" (11 cm)
Compressor Step Width	12.0" (30 cm)
Compressor Step Depth	5.75" (15 cm)
Level Legs	2
Temperature Range	41 to 72ºF
Interior Height 2	3.25" (8 cm)
Interior Width 2	12.25" (31 cm)
Interior Depth 2	5.25" (13 cm)
Sabbath Mode	Yes

AVAILABLE UPGRADES

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door
T1 Door Tint T2 Door Tint T3 Door Tint T4 Door Tint T1S Door Tint

FEATURES

18" Wide Wine Cellar

Undercounter single zone wine cellar for built-in or freestanding use

Built-in capable

Make the best use of space by installing your appliance under the counter

Commercial design

Meets UL-471 commercial standards

Panel-ready door trim

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry

Double pane tempered glass door

Heat-safe glass ensures your collection is protected

Digital thermostat

Electronic controls for precise temperature management

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

Stainless steel trimmed wooden shelves

Black wooden shelves feature stainless steel trim for an added touch of elegance

White LED lighting

Unique white lighting located inside the walls offers elegant illumination for the jet black interior

Professional handle

Vertically mounted handle in brushed stainless steel

Left hand door swing

For this unit with the door opening from the other side, see model CL18WCPNR

Bottle slots

Floor is specially slotted to store wine bottles safely in place

Factory-installed lock

Keyed lock located in the kickplate for optional security

Temperature alarm

Audibly alerts if the interior temperature is too warm

Open door alarm

Audible alarm will sound if the door is left ajar for over 60 seconds

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

Automatic defrost

Reduced maintenance and steady temperature performance

Sealed back

Space saving design with easier cleanability

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Fully finished black cabinet

Allows the unit to be used freestanding

Fully articulating European style hinge

Smoother opening and a better fit with an integrated European hinge

29 bottle capacity

Holds up to 29 Bordeaux or Burgundy style bottles

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
