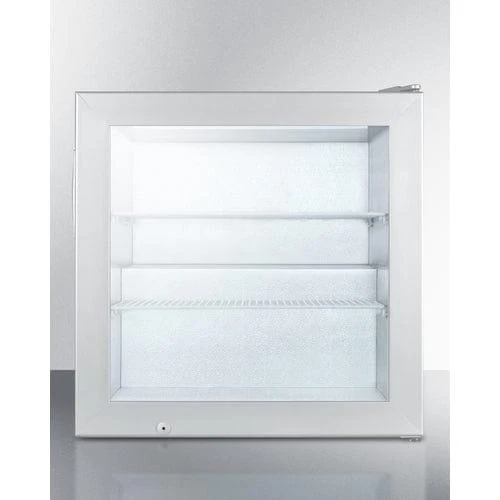

Summit Compact All-Freezer SCFU386

This Summit Compact All-Freezer SCFU386 is a must-have for anyone looking for a compact freezer solution. With its compact design, this freezer offers convenience and versatility without sacrificing storage capacity. Enjoy the benefits of a frozen food storage solution without compromising on space.

Meets NSF-7 standards for commercial storage

SUMMIT SCFU386 is a compact display freezer specially designed to promote impulse sales of select frozen goods.

This manual defrost unit comes fully featured for convenient use in commercial settings. A self-closing glass door helps to protect items from accidents, with an LED light providing an attractive presentation. Two wire shelves offer flexible storage and a factory installed lock offers security when needed.

The SCFU386 is ETL-S listed to NSF standards for use in commercial settings. With its compact size and special display features, this model is ideal for storing and displaying sorbet, water ice, and other frozen treats ideally served at 0ºF. For this unit with a stainless steel cabinet, see the SCFU386CSS.

SPECIFICATIONS

Overview
Height of Cabinet	24.0" (61 cm)
Height to Hinge Cap	24.5" (62 cm)
Width	23.38" (59 cm)
Depth	20.63" (52 cm)
Depth with door at 90°	42.0" (107 cm)
Capacity	2.0 cu.ft. (57 L)
Defrost Type	Manual
Door	Glass
Cabinet	Gray
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	4.0
Voltage/Frequency	115 V AC/60 Hz
Weight	83.0 lbs. (38 kg)
Shipping Weight	86.0 lbs. (39 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101022062
Freezer
Door Swing	RHD
Reversible	No
Interior Height	18.0" (46 cm)
Interior Width	18.75" (48 cm)
Interior Depth	15.38" (39 cm)
Shelf Type	Wire
Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Dial
Interior Light	Yes
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.4 oz.
High Side PSI	280.0
Low Side PSI	90.0
Compressor Step Height	8.25" (21 cm)
Compressor Step Width	18.75" (48 cm)
Compressor Step Depth	7.0" (18 cm)
Temperature Range	-4 to 5°F

AVAILABLE UPGRADES

Exterior
Latch - Factory-installed door latch requires manual release to open unit Alarm/Thermometer - Factory-installed alarm with external temperature readout PH - Probe Hole FA Front - Fan assist FA Rear - Fan assist DL2B - Factory installed NIST calibrated digital data logger (DDL)
Door
T1 Door Tint T1S Door Tint T2 Door Tint T3 Door Tint T4 Door Tint

FEATURES

Commercially approved

ETL-S listed to NSF standards for commercial use

Factory installed lock

Keyed security for a secure interior

Self-closing door

Ideal for busy commercial settings, where customers and staff don't always have the chance to ensure the door is closed

LED lighting

Switchable light illuminates whole interior

Glass door

Provides a full display of stored contents

Removable shelves

Two wire shelves included

Adjustable thermostat

Rear mounted to prevent accidental adjustments

Manual defrost

Static cooling system for improved temperature stability

Designed to operate at 0ºF

Temperature range: -4 to 5ºF

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals
