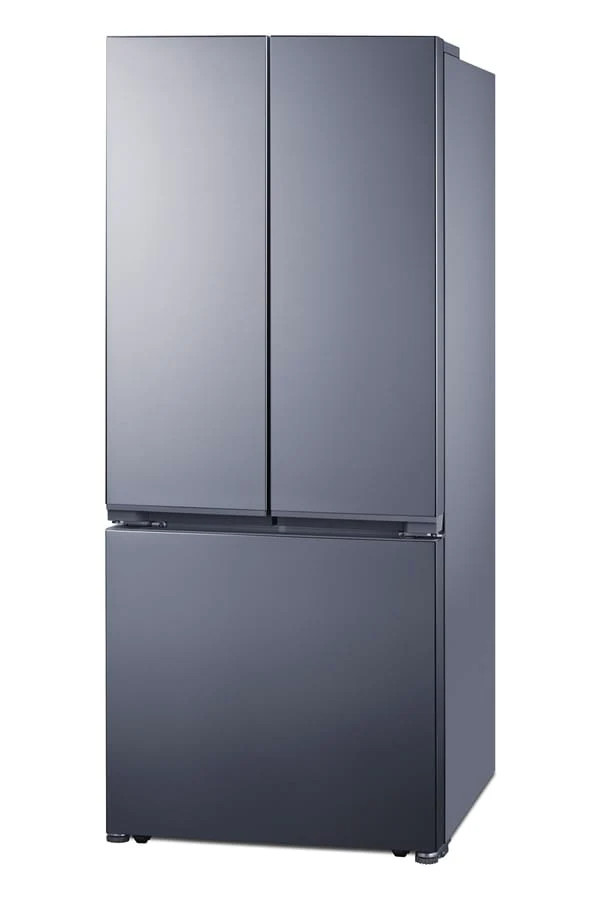

Summit FDRD175SSIM | 30" Wide French Door Bottom-Mount Refrigerator-Freezer

Summit's fully-featured, bottom-mount refrigerator-freezers are specially designed to bring modern style and true convenience to any kitchen.

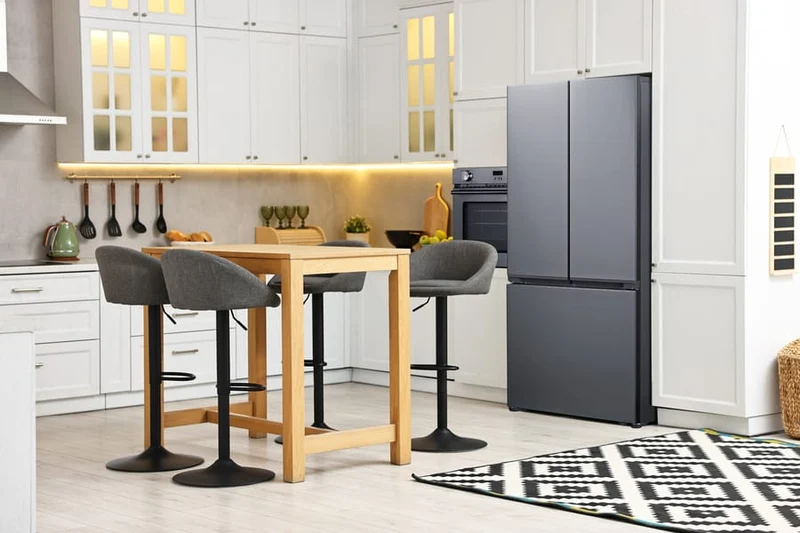

The ENERGY STAR certified counter depth FDRD175SSIM is conveniently sized at 30" wide. Stainless steel French doors feature an attractive horizontal grain, with a smooth silver cabinet for a stylish, modern look in any kitchen. The sealed back offers added space savings and easier cleanup.

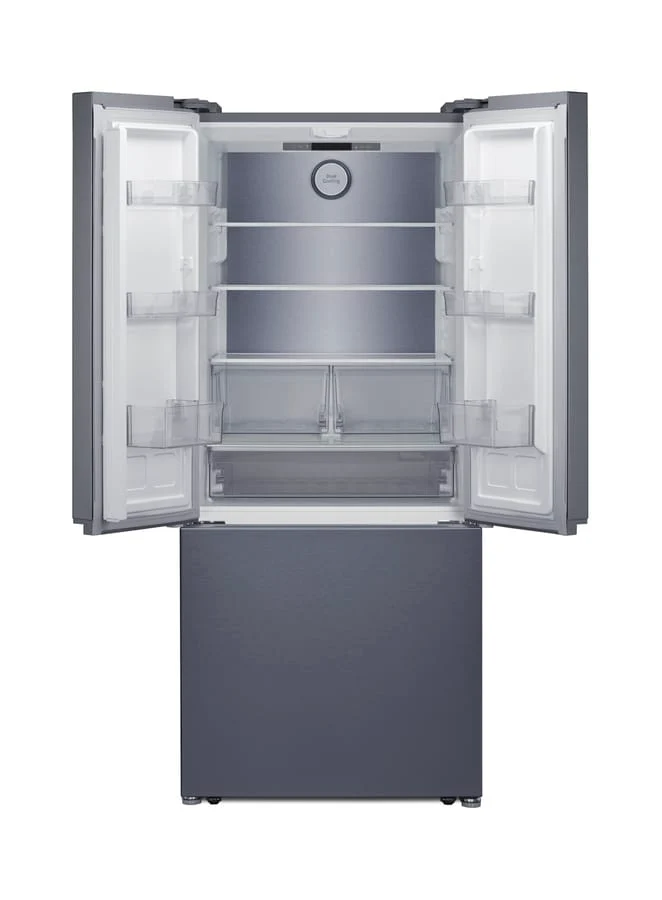

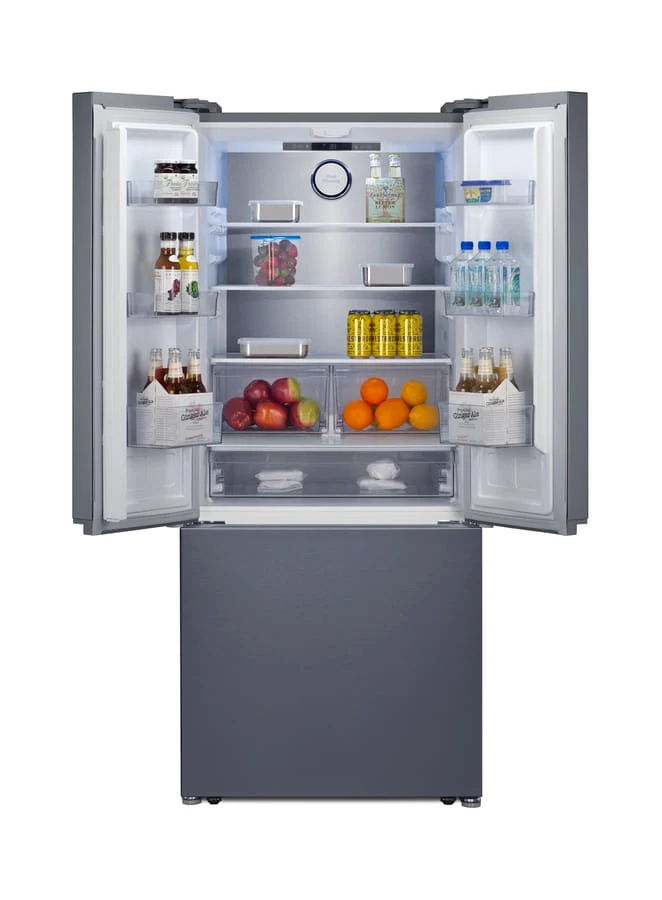

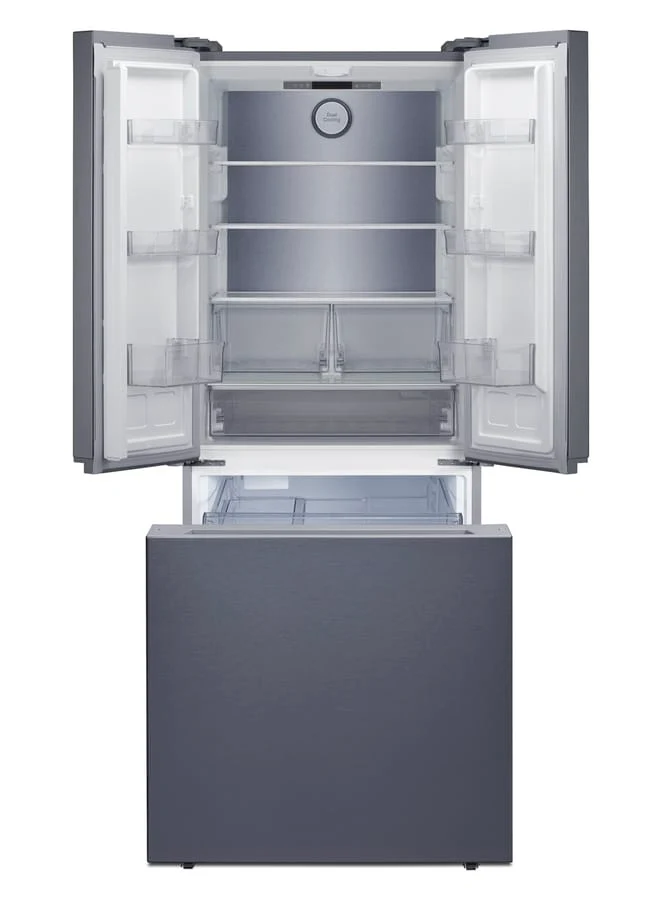

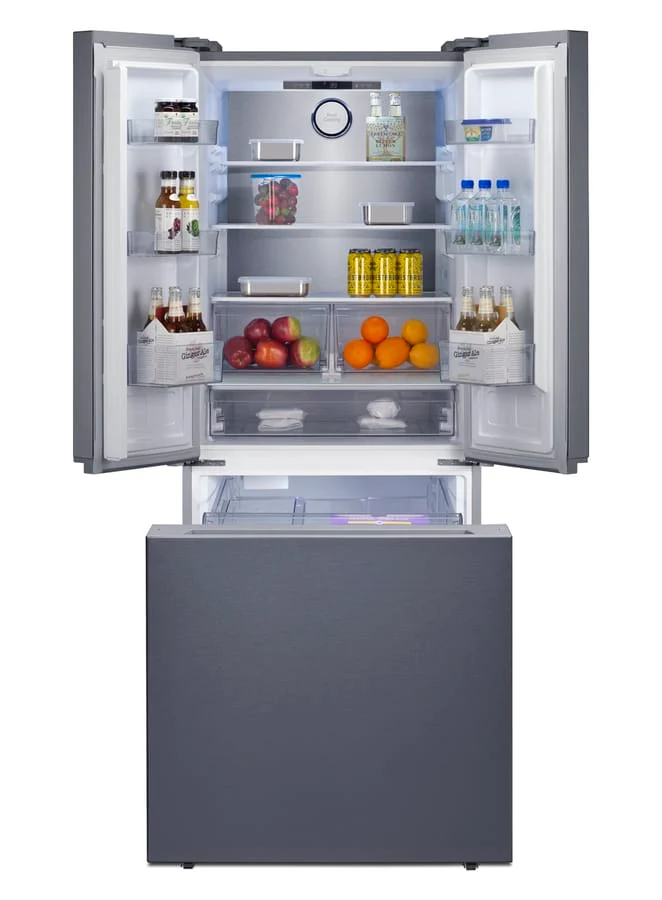

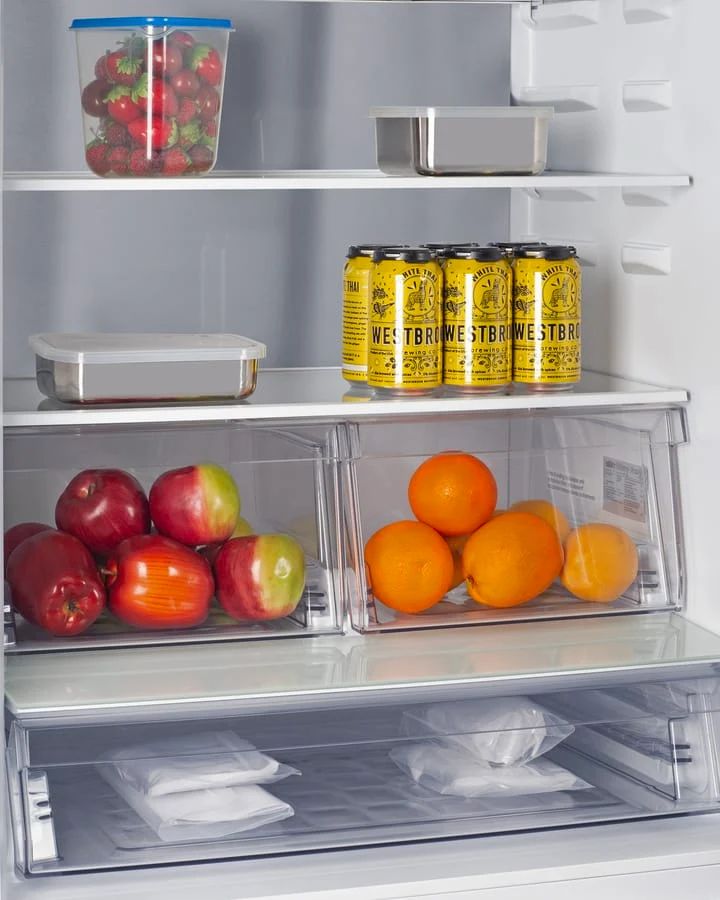

Inside, the FDRD175SSIM boasts a generous 16.1 cu.ft of storage space to meet the storage needs of any family, no matter their size. The rear wall is finished in stainless steel for added durability. This model utilizes frost-free operation for low user maintenance. The interior includes three adjustable glass shelves, two half-width produce crisper drawers, and a full-width deli drawer for easy storage of meats and cheeses. The doors include four removable half shelves and two full gallon shelves to safely store bottles and other condiments.

An innovative digital system lets you manage the refrigerator and freezer temperature with an intuitive digital thermostat. LED lighting in the side walls of the refrigerator offers an efficient and attractive view inside. The open door alarm alerts with an audio and visual signal when the door is left ajar for over one minute. This unit is equipped with an optional sabbath mode feature that allows you to deactivate certain electrical features for up to 72 hours.

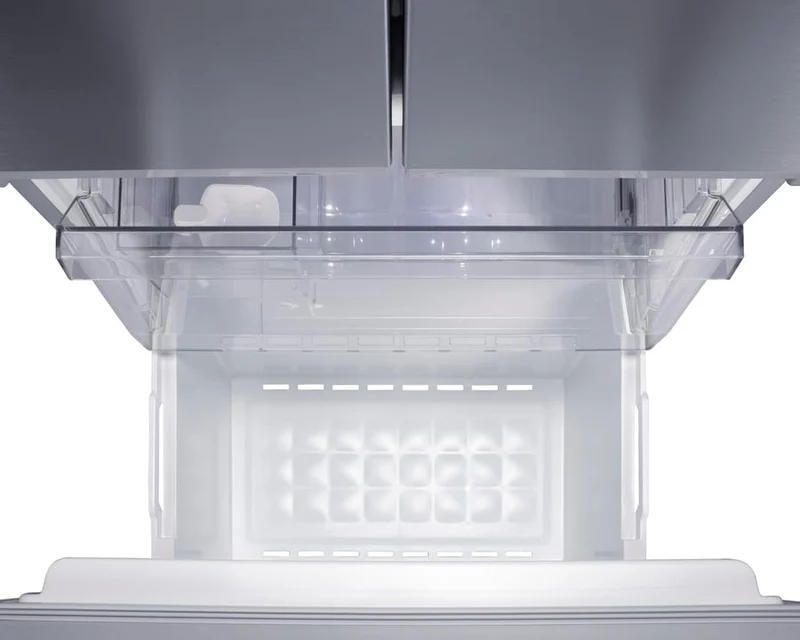

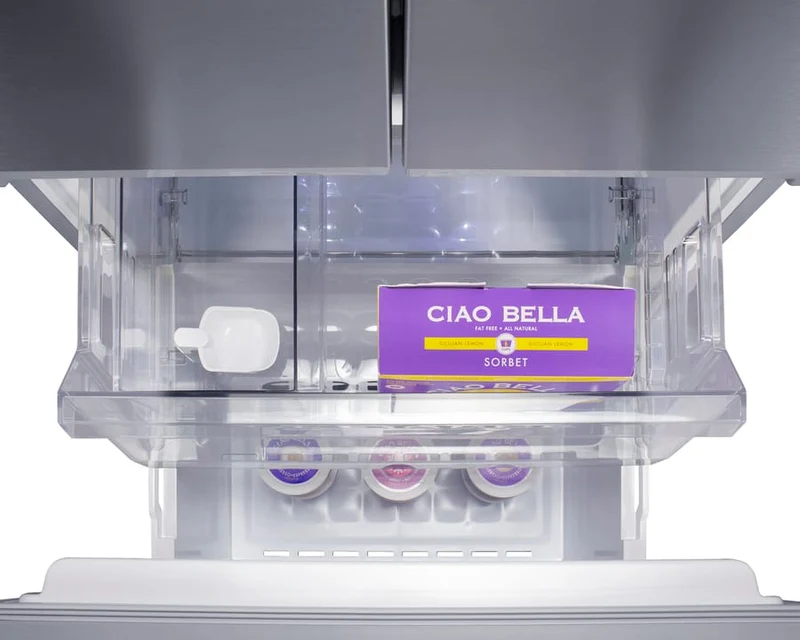

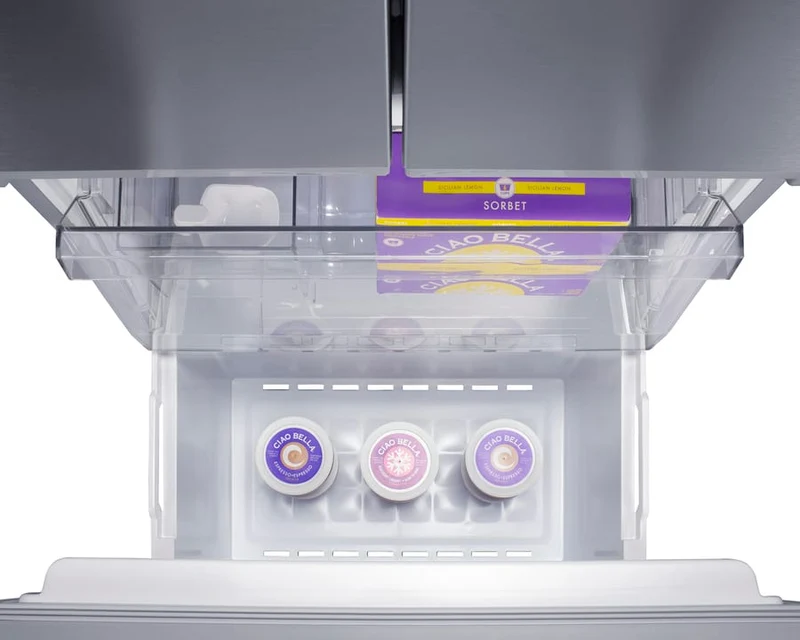

The FDRD175SSIM's large drawer freezer section features two interior slide-out drawers for ample storage and easy user access. The top drawer includes a factory-installed icemaker on the left side to ensure a steady supply of cubes. The deep lower drawer offers plenty of room to stack leftovers, ice cream, and other frozen goods. This unit includes a QuickFreeze setting to run the freezer at colder temperatures, ideal for freezing newly loaded groceries.

With its ENERGY STAR certified performance, attractive design, and convenient features, the FDRD175SSIM is the ideal choice for kitchens looking for an energy-efficient, user-friendly refrigerator-freezer. For this unit with standard swing doors, see model FFBF174SSIM.

SPECIFICATIONS

Overview
Height of Cabinet	69.5" (177 cm)
Width	29.88" (76 cm)
Width with Door Open	30.88" (78 cm)
Depth	27.75" (70 cm)
Depth with door at 90°	47.0" (119 cm)
Capacity	16.1 cu.ft. (456 L)
Defrost Type	Frost-Free
Door	Stainless Steel
Cabinet	Silver
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Energy Usage/Year	525.0kWh/year
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	218.0 lbs. (99 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101151595
Refrigerator-Freezer
Door Swing	French
Adjustable Shelves	Yes
Interior Drawers	Yes
Drawer Qty	5
Crisper Qty	2
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	37.75" (96 cm)
Refrigerator - Interior Width	25.25" (64 cm)
Refrigerator - Interior Depth	20.25" (51 cm)
Refrigerator - Capacity	10.89 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	2
Refrigerator - Full Door Shelves	2
Refrigerator - Half Door Shelves	4
Refrigerator - Temperature Range	33 to 46ºF
Freezer - Interior Height	22.0" (56 cm)
Freezer - Interior Width	24.25" (62 cm)
Freezer - Interior Depth	18.5" (47 cm)
Freezer - Capacity	5.22 cu.ft
Gallon Door Storage	Yes
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	2.12 oz.
Freezer - Temperature Range	-11 to 0ºF
Sabbath Mode	Yes
Sound Level	32.7 dB

FEATURES

30" Wide French Door Bottom-Mount Refrigerator-Freezer

Full-sized 16.1 cu.ft. French door refrigerator-freezer with a spacious interior to add modern style and true convenience to any kitchen space

Counter depth fit

Cabinet measures 24 1/2" deep for an ideal fit, with the overall depth with doors measuring 27 3/4"

ENERGY STAR certified

Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Bottom mount drawer freezer

Convenient design keeps all refrigerated storage at eye level for easier use

Factory-installed icemaker

Freezer section is equipped with a pre-installed icemaker that keeps a steady supply of ice

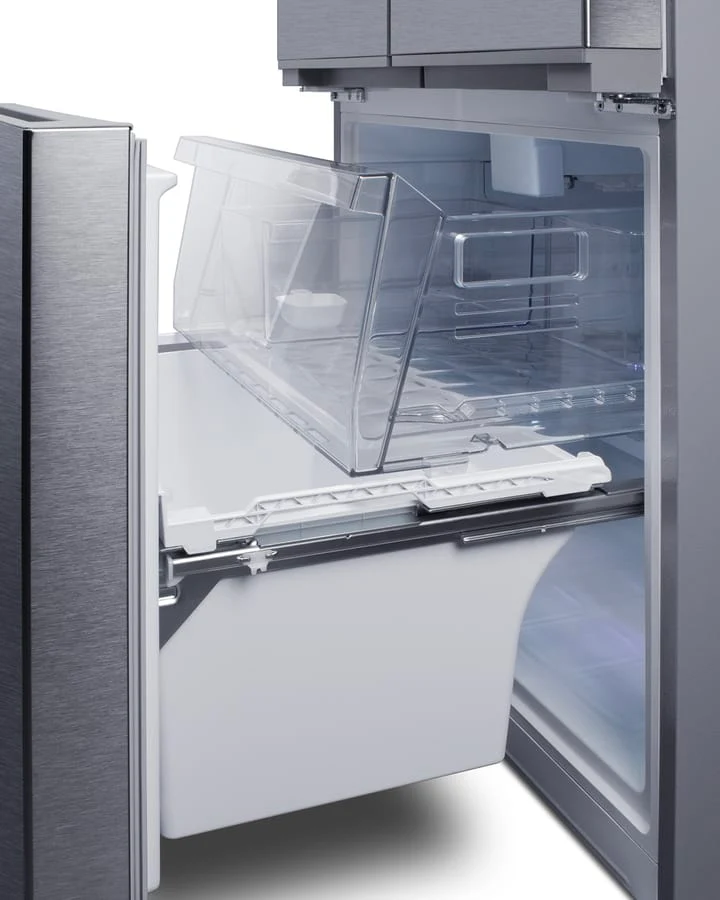

Two interior freezer drawers

Easy freezer access and ample storage with a tall lower drawer and slide-out top drawer

Approved for Canadian sales

ETL/ETL-C and NRCAN registered for use in Canada

Spacious capacity

16.1 cu.ft. interior offers generous storage space

Stainless steel finish

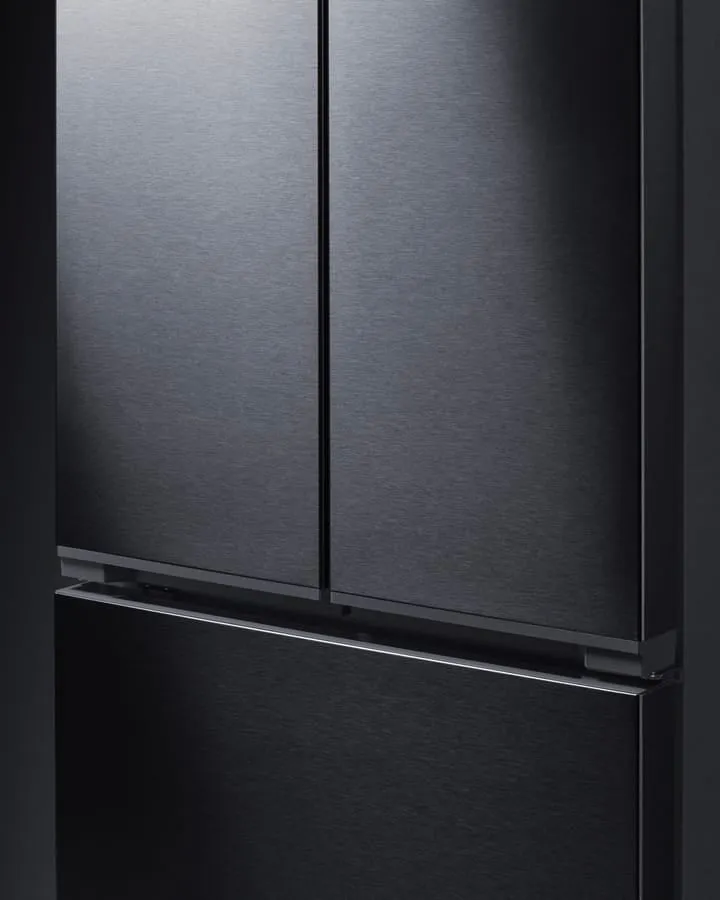

Stainless steel doors with a horizontal grain offer a professional look for any kitchen

Frost-free operation

No-frost convenience requires no manual defrosting

Digital temperature control

Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button

Deli drawer

Designed with enhanced cool air circulation to help preserve the freshness of deli items, including meats and cheeses

Crisper drawers

Get the longest life and best taste out of produce by storing it in two convenient slide drawers

Gallon door storage

Two deep racks accept full gallon-sized containers

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Adjustable door storage

Four door racks can be adjusted in height to accommodate a variety of sizes

Open door alarm

Audible and visual alarm will alert if the doors have been left ajar for over 2 minutes

Interior LED lighting

Energy efficient lighting located inside the walls to provide a better view of the interior

QuickFreeze function

This setting is ideal for freezing fresh foods quickly. Function overrides current thermostat controls to ensure compressor operates continuously

Sabbath mode

This unit is equipped with an optional sabbath mode feature that allows you to deactivate certain electrical features for up to 72 hours

Sealed back

Space-saving design with no exposed coils in the rear offers easy cleanability

Quiet operation

Variable compressor ensures a quiet performance measured at just 32.7 dB

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
