Summit FF195CSSIF | Shallow Depth Built-In All-Refrigerator

Introducing the Summit Shallow Depth Built-In All-Refrigerator - the perfect addition to any kitchen. With its shallow depth, this all-refrigerator is designed to fit seamlessly into your existing cabinetry for a sleek and modern look. Enjoy the convenience of extra refrigerated storage without sacrificing valuable space.

Shallow 18" depth design ideal for small-spaced commercial and residential settings

Summit's shallow depth series of built-in undercounter refrigeration includes ENERGY STAR certified choices for improved efficiency in modern style.

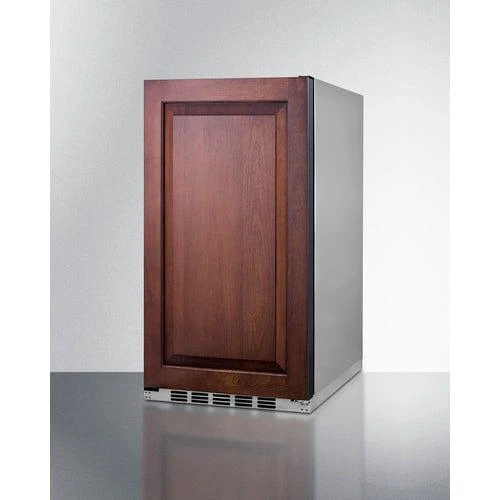

The FF195CSSIF features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 18 inches deep, it comes in a stainless steel wrapped cabinet with a sealed back for easy cleaning of the unit. The height can be adjusted between 33 7/8 and 34 1/2 inches to best suit your space. The stainless steel door features an integrated stainless steel frame designed to accept panels, allowing you to create a custom look under the counter (panel size: 31 9/16 inch H x 18 7/8 inch W at 3/4 inch thick). Customers provide their own handle to best match their setting. The space-saving right-angle plug and integrated hinge provide added flexibility in unit placement.

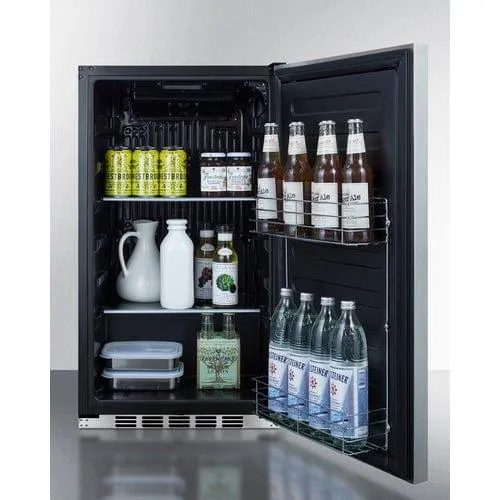

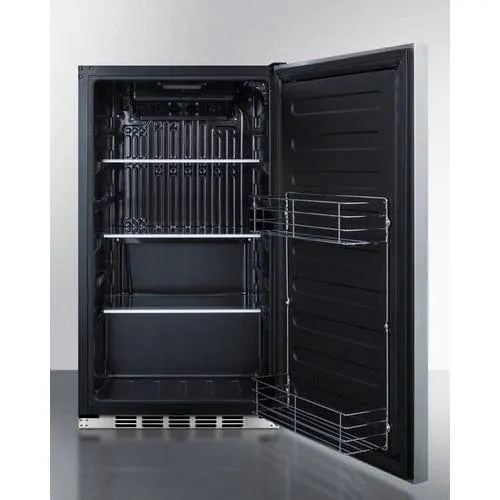

Inside, the FF195CSSIF utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.

The FF195CSSIF is ENERGY STAR certified and designed for built-in or freestanding use. For a similar glass door unit commercially approved for outdoor use, see the SPR489OSCSSPNR.

SPECIFICATIONS

Overview
Height of Cabinet	34.0" (86 cm)
Width	19.0" (48 cm)
Depth	18.0" (46 cm)
Depth with door at 90°	35.0" (89 cm)
Capacity	3.13 cu.ft. (89 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	259.0kWh/year
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	80.0 lbs. (36 kg)
Shipping Weight	115.0 lbs. (52 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101075075
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Height Adjustable	Yes
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.88oz.
High Side PSI	320.0
Low Side PSI	120.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	34 to 50ºF
Sound Level	33.4 dB
Dimensions
Interior Height	29.0" (74 cm)
Interior Width	16.0" (41 cm)
Interior Depth	12.75" (32 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	16.0" (41 cm)
Compressor Step Depth	6.25" (16 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing

FEATURES

18" shallow depth

Ideal for home wet bars, island kitchens, and other applications with limited footprint space

ENERGY STAR certified

Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Commercially approved

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Panel-ready door

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 18 7/8" W x 31 9/16" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

Stainless steel wrapped exterior

Cabinet features 304 grade stainless steel construction for added durability and a professional look

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Automatic defrost

Reduced user maintenance with auto defrost system

Adjustable shelves

Three glass shelves with brake system ensures safe, optimal storage

Door racks

Two chrome racks accommodate a variety of sizes for optimal interior storage

LED lighting

Automatically illuminates when the door is open for an attractive and energy efficient view

Black interior finish

Allows for easy cleaning and organization within the interior of the unit

Adjustable thermostat

Dial thermostat with seven temperature settings offers easy temperature management

Versatile construction

Meets both residential and commercial standards

Sealed back

Space saving design for easier cleanability

Right-angle plug

Provides flexibility in unit placement without needing added depth

Factory installed lock

Door includes a lock and key for optional security. If planning to use the lock, be sure to include a 5/8" hole in the lower center of your custom panel

Height adjustable

Four leveling legs allow you to adjust the height between 33 7/8" and 34 1/2" to best fit your undercounter space

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
