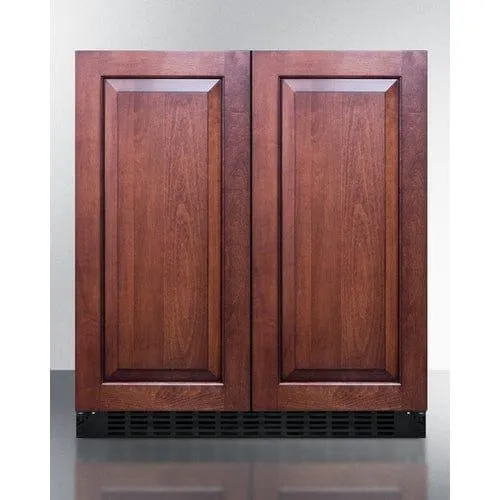

Summit FFRF3070BIF | 30" Wide Built-In Refrigerator-Freezer

DISCONTINUED- REPLACED BY FFRF3070BPNR

The Summit 30" Wide Built-In Refrigerator-Freezer offers a spacious solution for your kitchen. With a wide design, this model can store a large volume of food items. Panels are not included, providing the flexibility to match your existing decor. Keep your food fresh and organized with this convenient refrigerator-freezer.

Full frost-free operation in both the refrigerator and freezer

SUMMIT brings quality and value under the counter with the industry’s largest collection of built-in refrigeration.

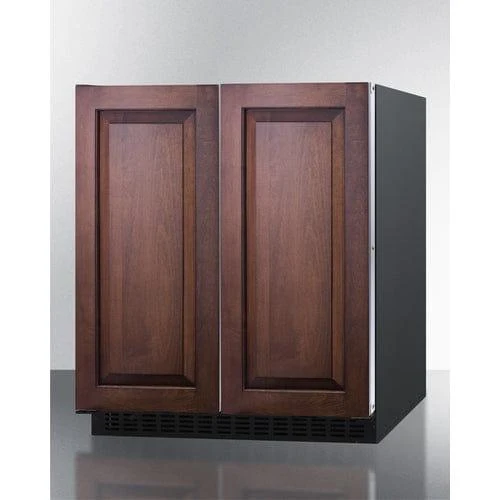

Sized at 30" wide, the FFRF3070BIF is an all-in-one side-by-side refrigerator-freezer. The front breathing design allows built-in installation under counters, while the fully finished black cabinet also enables freestanding use. The French swing doors feature an integrated stainless steel frame that lets users install their own overlay panels for a custom look (panel size: 30" H x 14 5/8" W). Users install their own handles. The sealed back ensures easier cleanup with added space savings.

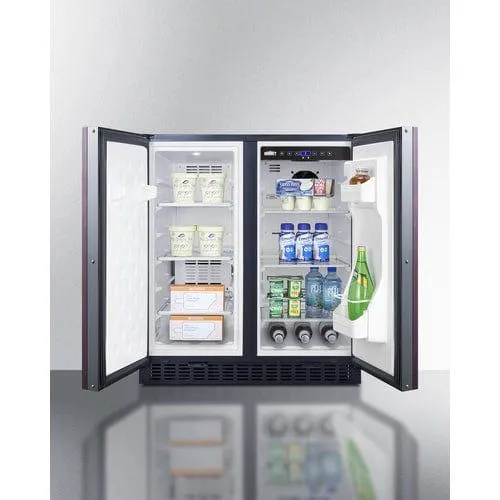

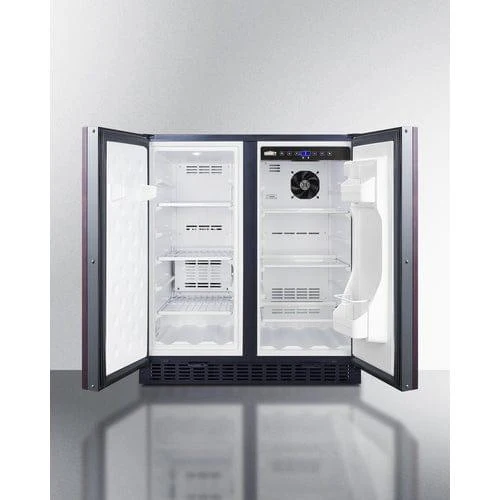

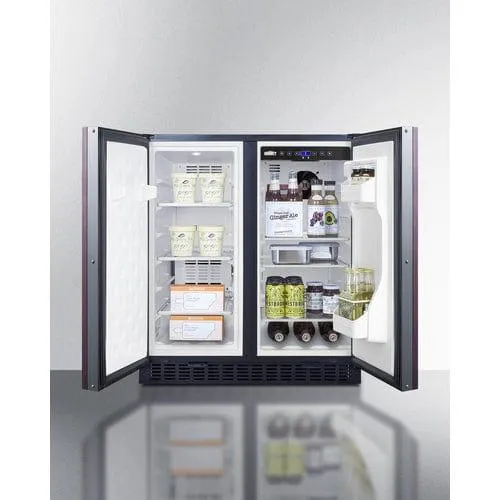

Inside, the FFRF3070BIF features a 2.4 cu.ft. frost-free freezer compartment on the left and a 3 cu.ft. frost-free refrigerator compartment on the right. The refrigerator includes a digital thermostat allowing users to manage the temperature in each compartment, with a readout in Celsius or Fahrenheit for added convenience. Adjustable glass shelves offer cleaner spill-proof storage for fresh food items, while two removable door shelves provide additional storage space as needed. An internal fan assures the compartment is cooled evenly from top to bottom. The freezer compartment includes adjustable wire shelves to ensure proper cold air circulation. Both sides feature LED lighting to provide an attractive, energy efficient presentation. The slotted floor design is ideal for keeping bottles safely in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that allows you to disable certain functions during religious observance.

With its innovative all-in-one design, user-friendly features, and full frost-free operation, the FFRF3070BIF is a great choice for smaller kitchens looking to maximize storage space under the counter.

SPECIFICATIONS

Overview
Height of Cabinet	34.0" (86 cm)
Width	29.5" (75 cm)
Depth	24.13" (61 cm)
Capacity	5.4 cu.ft. (153 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	440.0kWh/year
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	125.0 lbs. (57 kg)
Shipping Weight	150.0 lbs. (68 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101054179
Refrigerator-Freezer
Door Swing	French
Adjustable Shelves	Yes
Interior Light	Yes
Refrigerator - Interior Height	26.63" (68 cm)
Refrigerator - Interior Width	12.0" (30 cm)
Refrigerator - Interior Depth	17.63" (45 cm)
Refrigerator - Capacity	3.0 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	3
Refrigerator - Full Door Shelves	2
Refrigerator - Temperature Range	36°F to 43°F
Freezer - Interior Height	25.38" (64 cm)
Freezer - Interior Width	10.38" (26 cm)
Freezer - Interior Depth	16.5" (42 cm)
Freezer - Capacity	2.4 cu.ft
Freezer - Shelf Type	Wire
Freezer - Shelf Qty	3
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.45 oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs	2
Freezer - Temperature Range	-4º to 4ºF
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
HG - Hospital grade cord PH - Probe Hole Alarm/Thermometer - Factory-installed alarm with external temperature readout DL2B - Factory installed NIST calibrated digital data logger (DDL)

FEATURES

All-in-one design

Separate refrigerator and freezer sections with single compressor operation

Built-in capable

Front-breathing system allows the unit to be used built-in

Panel-ready doors

Integrated stainless steel door frame on each door accepts full overlay panels, allowing you to customize the door or blend it into your cabinetry design (panel dimensions: 30" H x 14 5/8" W at 3/4" thick; maximum weight: 10 lbs.)

Frost-free operation

No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments

Digital thermostat

Refrigerator section includes a digital control panel to manage each compartment's temperature for added convenience, with a readout in Celsius or Fahrenheit

LED lighting

Interior LED lighting in both sections offers an attractive and energy efficient presentation

Sabbath mode

Setting allows you to disable the digital displays, lights, and alarms for religious observance

Adjustable shelves

Refrigerator section includes spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable wire shelves to ensure proper cold air circulation

Door shelves

Two removable door racks provide additional storage as needed

Open door alarm

Alarm will sound if either door is left open for over 60 seconds

High temperature alarm

Audible alarm sounds if the interior temperature rises above the recommended range

Slotted floors

Floor is specially designed with slots to allow you to store bottles safely on their sides

Internal fan (refrigerator compartment)

Fan-forced cooling ensures the compartment is evenly cooled from top to bottom

Sealed back

Space-saving design with no exposed coils in the rear offers easy cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Temperature memory function

In the event of power loss, the unit will retain its last temperature settings upon power recovery

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
