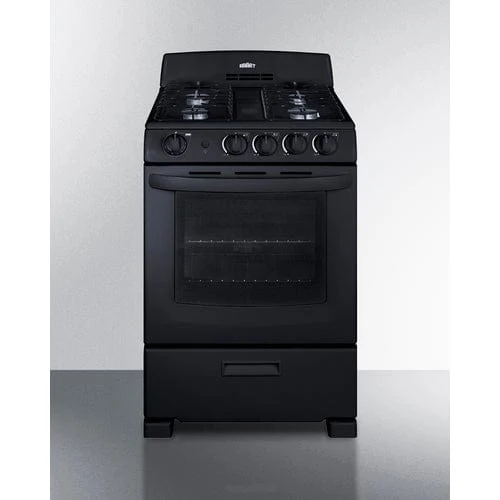

Summit RG2402B 24" Wide Gas Range

This 24" wide gas range by Summit offers a compact and efficient cooking solution for smaller kitchens. It features four sealed burners and a 2.9 cu. ft. oven, providing precise temperature control and even heating for your dishes. With a professional tone and objective language, this range is a reliable and practical choice for your home.

Made in North America with sealed burners for safer, cleaner cooking

SUMMIT's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens.

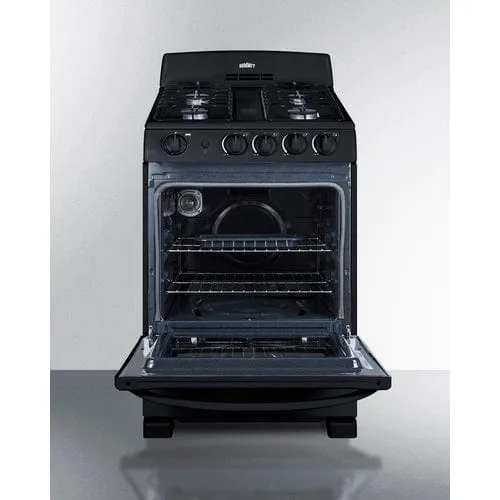

Sized at 24" wide, the RG2402B features a 2.9 cu.ft. oven with an interior light and large window for easy cooking visibility. Two slide-out racks include a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment.

The RG2402B comes in a jet black finish,  with color-matched push-to-turn knobs and an easy-to-grab handle. This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. The high backguard helps to protect your walls from spills, with enamel grates for lasting durability. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion.

With its clean look and unique size, the RG2402B is the ideal gas range for apartment and small home kitchens. Additional choices are available in white and stainless steel, as well as 20" wide options. Browse the full Summit collection to find the perfect fit.

SPECIFICATIONS

Overview
Nominal Height	42.0" (107 cm)
Height of Cabinet	42.0" (107 cm)
Nominal Width	24.0" (61 cm)
Width	23.5" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.75" (65 cm)
Depth with door at 90°	43.25" (110 cm)
Door	Black
Cabinet	Black
US Electrical Safety	CSA
Canadian Electrical Safety	CSA-C
Amps	5.0
Voltage/Frequency	115 V AC/60 Hz
Weight	130.0 lbs. (59 kg)
Parts & Labor Warranty	1 Year
UPC	761101103778
Gas Range
Ignition	Spark
LP Convertible	Yes
Oven Capacity	2.9 cu.ft
Cooktop Surface	Metal
Burner Type	Sealed
Number of Burners	4
Burner #1 BTU	12000.0
Burner #2 BTU	9500.0
Burner #3 BTU	9500.0
Burner #4 BTU	5000.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	15.25" (39 cm)
Oven Interior Width	19.0" (48 cm)
Oven Interior Depth	17.5" (44 cm)
Broiler Location	Below Oven

FEATURES

24" Wide Gas Range

Slim-fitting gas range with four sealed burners for easy cooking in apartments and other smaller kitchens

Jet black finish

Modern style to suit any kitchen

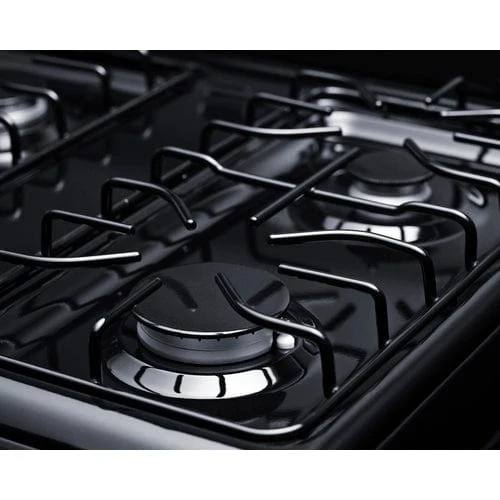

Sealed burners

Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

LP kit included

Unit is set for natural gas but can be converted aftermarket with the included LP kit

Large oven

Full 2.9 cu.ft. interior in slim 24" width

High output burner

Front left burner features 12,500 BTU output for powerful cooking

Two semi-rapid burners

Two right burners operate at 9,500 BTU to handle most heating needs

Low output burner

Rear left burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Continuous grates

Two sets of enamel grates are removable for easy cleaning, with solid construction to support large pots and pans

Broiler compartment

Drop-down lower compartment offers the ideal conditions for broiling

Oven window

Large window makes it easier to monitor your cooking

Oven light

Interior light included for easy viewing

Push-to-turn knobs

Safety knobs help prevent accidents from turning on the oven or burners

Electronic ignition

Added safety with spark ignition system

Safety brake system for oven racks

Sliding racks will stay in your oven with special brake mechanism

Broiler pan included

Two-piece broiler pan with lid included with each range

ADA compliant design

Upfront controls and easy-to-operate knobs offer easier accessibility

High backguard

Solid backing prevents stovetop contents from splashing up or boiling over and staining walls

Power cord included

Standard 3-pronged 115V cord included for the electronic ignition

TAA compliant

Made in North America

Anti-tip bracket

Included for user installation to help prevent accidents
