Summit SCR610BLCHPNR | 24" Wide Single Zone Built-In Commercial Wine Cellar

Introducing the Summit SCR610BLCHPNR, the perfect addition to your commercial space. With a sleek 24" width and single zone feature, this built-in wine cellar offers precise temperature control for your valuable wine collection. Keep your wines at their optimal temperature and showcase them in style with this professional-grade wine cellar.

Stainless steel shelves designed to store champagne and sparkling wine bottles at a slight angle for the perfect display in commercial settings

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

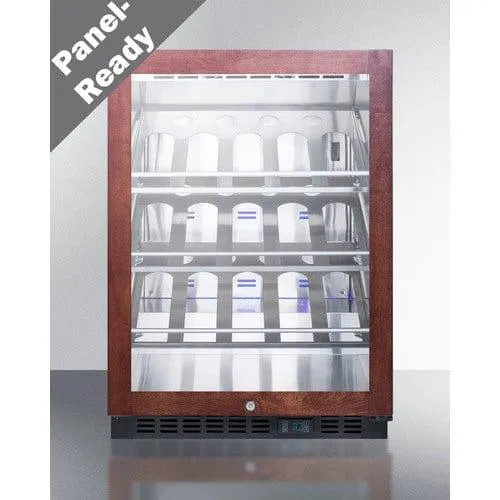

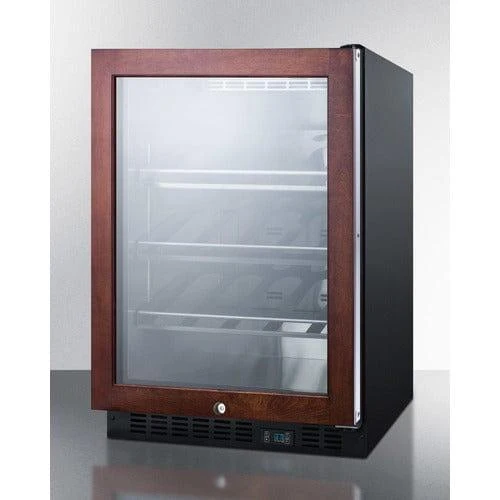

The SCR610BLCHPNR is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. The double tempered glass door door features a panel-ready door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness). A factory-installed lock offers additional security. This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD. Users provide their own handle.

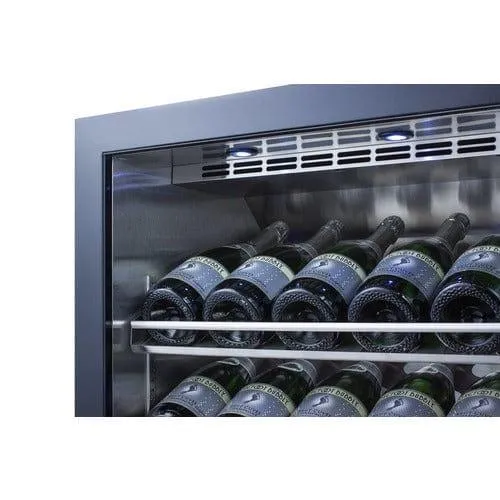

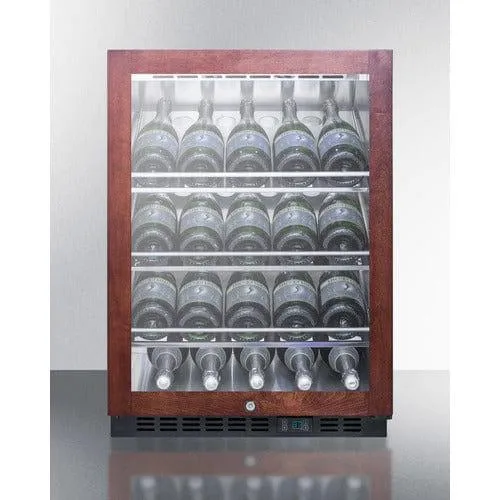

Inside, the SCR610BLCHPNR includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. Digital controls make it easy to manage the interior.

With its unique design and commercial grade construction, the SCR610BLCHPNR is the perfect undercounter option for storing and displaying larger bottles. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.

SPECIFICATIONS

Overview
Height of Cabinet	34.0" (86 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	45.5" (116 cm)
Capacity	5.0 cu.ft. (142 L)
Bottles	20 bottles
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	140.0 lbs. (64 kg)
Shipping Weight	150.0 lbs. (68 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101065502
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Steel
Shelf Qty	3
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.99 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	25.0" (64 cm)
Interior Width 1	19.38" (49 cm)
Interior Depth 1	17.38" (44 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	19.38" (49 cm)
Compressor Step Depth	4.63" (12 cm)
Temperature Range	36 to 43ºF
Sound Level	37.4 dB

AVAILABLE UPGRADES

Door
T4 Door Tint T3 Door Tint T2 Door Tint T1S Door Tint T1 Door Tint
Exterior
LHD - Left hand door swing SSK - Stainless steel kickplate

FEATURES

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Built-in capable

Make the best use of space by installing this unit under the counter and flush with other cabinetry

Champagne racks

Stainless steel shelves are specially sized to store wider wine and champagne bottles

Panel-ready door trim

Door frame can be customized with a custom overlay panel (panel frame dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness)

Bottle display

Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves

Interior LED lighting

Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view

Double pane tempered glass door

Stainless steel trimmed glass door offers a full display of stored items

Stainless steel interior

Walls are constructed from stainless steel for added strength and easy cleanup

Factory installed lock

Keyed lock for a secure interior

Digital thermostat

Intuitive digital controls ensure easy temperature management

Factory reversible door

Door ships with a right hand door swing. For a left hand version, add option "LHD"

Automatic defrost

Reduced user maintenance with automatic defrost

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

Sealed back

Space saving design with easier cleanability

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
