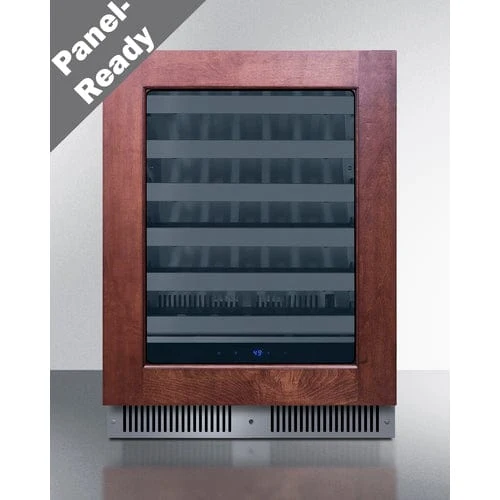

Summit SDHW2442PNR 24" Wide Built-In Wine Cellar

The Summit SDHW2442PNR Wine Cellar is a spacious and versatile choice for storing your wine collection. With a width of 24 inches and a depth of 18 inches, this single-zone cooler can accommodate a variety of bottle sizes. At a standard 34 inches in height, it effortlessly fits into undercounter spaces.

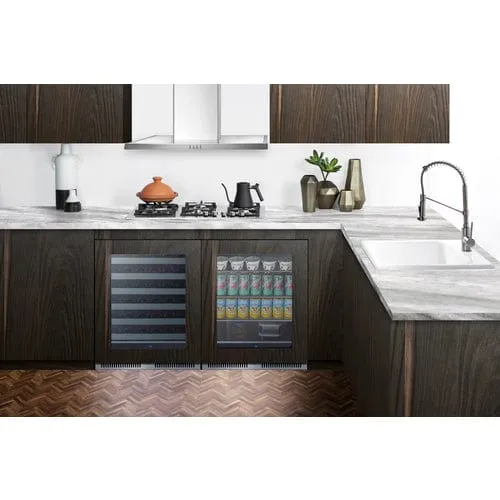

Shallow 18" depth for an easy fit in island kitchens, wet bars, and other undercounter spaces with shallower cutout

Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

The SDHW2442PNR is a 24" wide single-zone wine cellar sized at 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The panel-ready SDHW2442PNR features our fully articulating European hinge, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. The user-reversible door swing allows easy adjustment as needed.

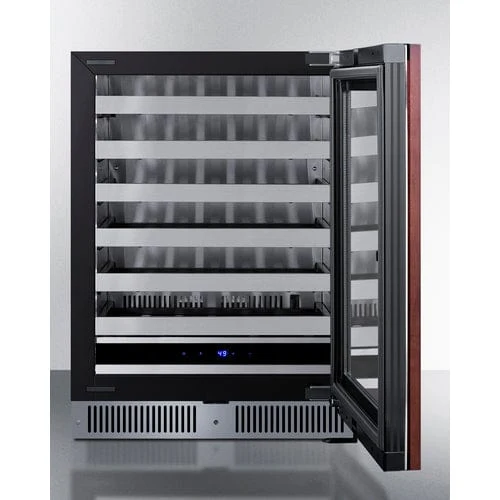

The inside features stainless steel construction for improved durability and sanitation. White LED lighting in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The angled digital control panel enables you to adjust the temperature between 41º and 68ºF to accommodate red, white, or sparkling wine bottles. Our uniquely designed steel shelves in a jet black finish slide out smoothly, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery.

Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances.

The SDHW2442PNR is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our SDHG2443PNR beverage center.

Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.

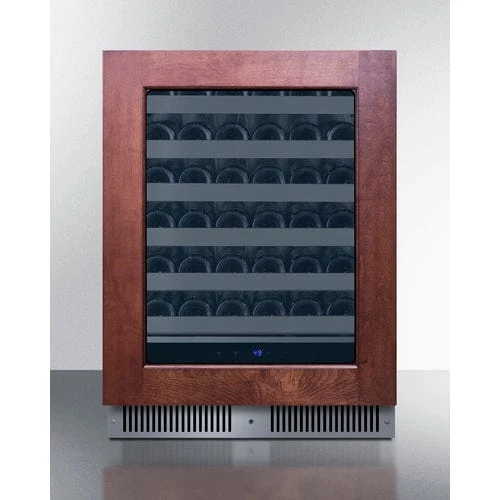

NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.

SPECIFICATIONS

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.75" (86 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	18.0" (46 cm)
Depth	18.0" (46 cm)
Depth with Handle	19.75" (50 cm)
Depth with door at 90°	41.25" (105 cm)
Capacity	3.25 cu.ft. (92 L)
Bottles	33 bottles
Defrost Type	Frost-Free
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	114.0 lbs. (52 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101145723
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Steel
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.38 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	26.0" (66 cm)
Interior Width 1	19.25" (49 cm)
Interior Depth 1	12.25" (31 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	19.25" (49 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	4
Temperature Range	41°F to 68°F
Sabbath Mode	Yes
Sound Level	33.4 dB

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door
T1 Door Tint T2 Door Tint T3 Door Tint T4 Door Tint T1S Door Tint

FEATURES

24" Wide Wine Cellar

Single zone built-in wine cooler for residential or commercial storage

18" depth

Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Commercially approved

ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

Versatile design

Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim

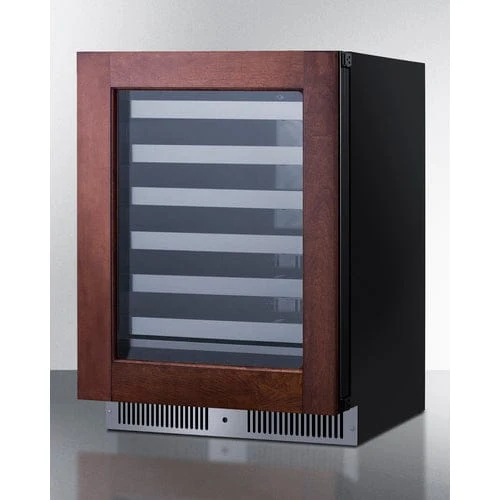

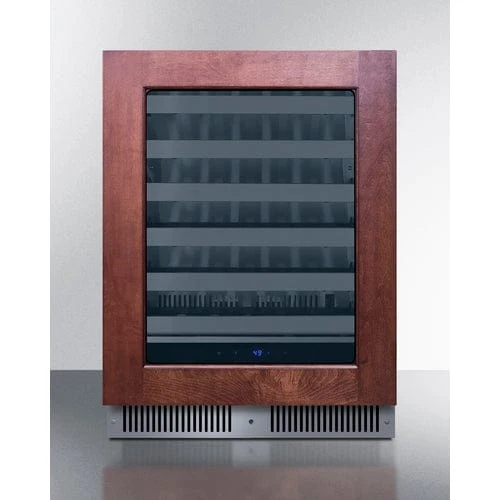

Panel-ready door trim

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame

Double pane tempered glass door

Elegant design offers a clear but protected view of your interior

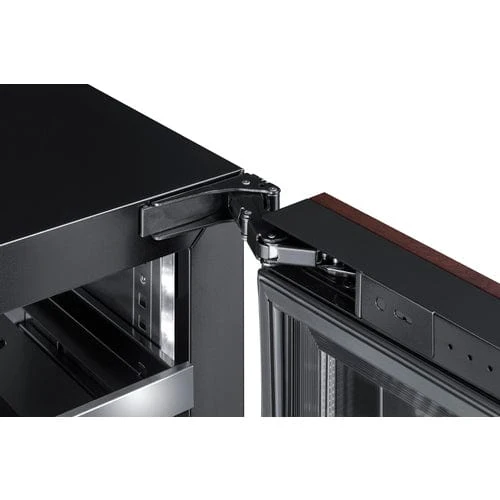

Fully articulating European style hinge

Smoother opening and a better fit with an integrated European hinge

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Stainless steel interior

Walls and floor are constructed from stainless steel for added strength and easy cleanup

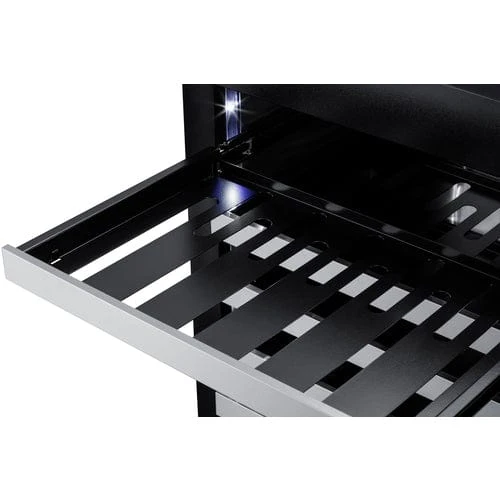

Commercial wine shelving

Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

Frost-free operation

No-frost operation for minimum user maintenance

Digital controls

Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Angled Thermostat

Thermostat’s unique and ergonomic position allows for more accessible temperature readings with zero bending required

Ideal temperature range

The unit's temperature range of 41º to 68ºF is ideal for red, white, or sparkling wine bottles

Dimmable LED light

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

High/low temperature alarm

Audible alarm sounds if the interior temperature rises out of set range

Sabbath mode

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

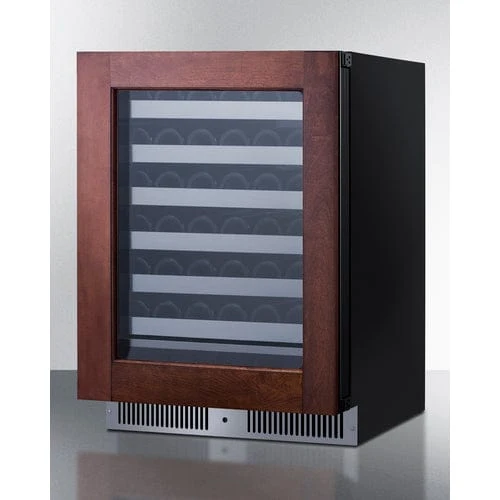

Large capacity

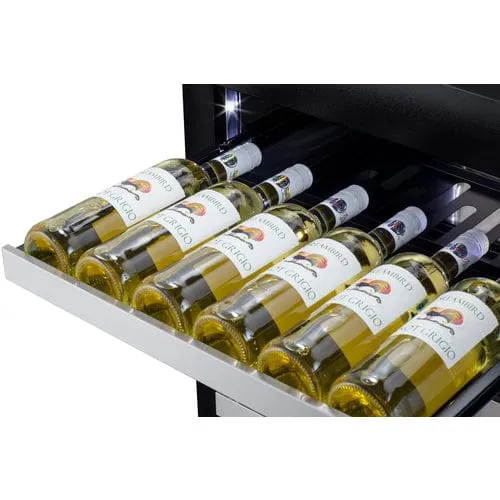

33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)

Internal fan

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Open door alarm

Alarm sounds if the door is left open for more than 60 seconds

Fully finished black cabinet

Allows the unit to be used freestanding

Sealed back

Space-saving design with no exposed coils that offers easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Quiet operation

Runs under 34 dB for a quiet performance that won't interrupt your conversation

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
