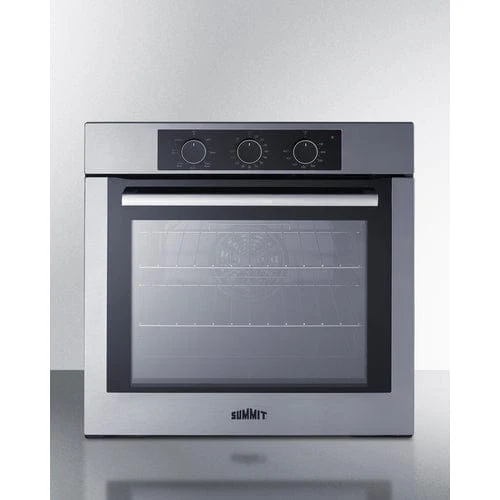

Summit SEW2401 | 24" Wide Electric Wall Oven

Efficient design compatible with a 20 amp circuit, ideal for kitchens with limited power

Summit helps enhance small kitchen functionality with fully featured electric wall ovens that offer cooking flexibility in spaces with power limitations.

Model SEW2401 is a 208-240V electric wall oven with convection designed for built-in installation in 23" H x 22.25" W x 24" D cutouts. It utilizes lower amp operation (11.9 to 13.7 amps), allowing use with a 20-amp circuit. Professional installation is required.  When installed at the proper height, this unit complies with ADA accessibility guidelines. Brushed stainless steel look trim, a triple-paned glass window, and a professional handle create a modern look, while analog controls offer simple and intuitive operation.

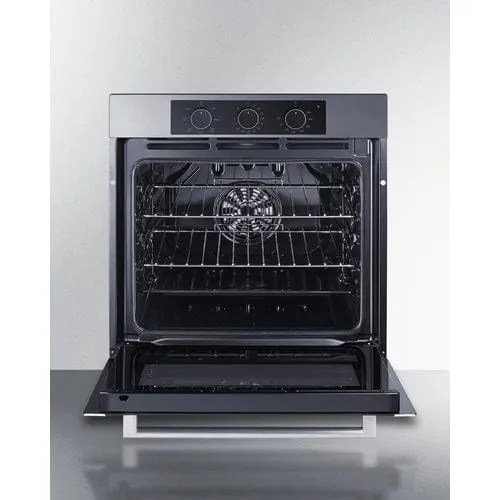

Inside, the SEW2401 includes an oven light for easier monitoring of your cooking. To better accommodate dishes of different sizes, this unit features two gliding wire racks with brakes that can be placed at five rack positions. We also include a full-width baking pan. The flat bottom and 2.86 cu.ft. interior can hold larger cookware and support full-sized meals (such as turkeys) to maximize cooking capacity. This unit has a removable oven door for easier cleaning and maintenance.

The SEW2401 offers a range of heating functions to cover virtually all of your cooking needs. The analog controls are easy to use, with specialty settings for baking, broiling, convection baking, convection broiling, convection roasting, and defrosting (fan only). The dial timer function allows you to set a cooking time for up to 120 minutes.

With its premium features, modern style, and ideal size, the SEW2401 is the perfect choice for space-challenged kitchens looking to maintain full cooking capacity in a slimmer footprint. For compatible cooktops, browse the full Summit selection.

SPECIFICATIONS

Overview
Height of Cabinet	23.38" (59 cm)
Width	23.38" (59 cm)
Depth	23.25" (59 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	42.25" (107 cm)
Capacity	2.86 cu.ft. (81 L)
Door	Glass/SS
Cabinet	-
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	13.9
Voltage/Frequency	220 V AC/60 Hz
Weight	93.0 lbs. (42 kg)
Parts & Labor Warranty	1 Year
UPC	761101145099
Electric Walloven
Controls	Dial
Oven Light	Yes
Cooking Timer	Yes
Temperature Range	150-500°F
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Interior Height	14.75" (37 cm)
Interior Width	18.75" (48 cm)
Interior Depth	17.25" (44 cm)
Cutout Height	23.0" (58 cm)
Cutout Width	22.25" (57 cm)
Cutout Depth	24.0" (61 cm)

FEATURES

24" Wide 208-240V Wall Oven

24" wide electric wall oven for built-in installation in residential kitchens

Built-in design

Designed for installation in cabinetry or under a counter; cutout dimensions:23" H x 22.25" W x 24" D

Low amperage

11.9 to 13.7 amp operation allows use with a 20 amp circuit, ideal for homes with limited power

Large capacity

Spacious 2.86 cu.ft. interior to fit an assortment of medium to large dishes

ADA-compliant

When installed in accordance with section 804.6 of the ADA Standards for Accessible Design, this unit is ADA-compliant

Stainless steel front

Door is constructed from brushed stainless steel for modern luxury built to last

Easy knob controls

Classic analog controls for intuitive cooking

Multiple cooking functions

Settings include bake, convection bake, broil, convection broil, defrost, and convection roast

Convection bake function

Adds a convection fan during the baking process to circulate heated air for a more even heat distribution

Convection broil function

Combines the broil process with convection fan for even heating

Bake function

Standard heating via upper and lower elements with a range of 150 to 500ºF

Broil function

Direct heating ideal for thick cuts of meat, fish, and poultry

Defrost setting

No-heat function will let the fan run for quicker and efficient thawing of frozen foods

Cooking timer

Dial timer can be set up to 120 minutes and will automatically turn the oven off when it reaches 0

Oven window

Triple pane glass offers a full view of your interior, letting you monitor cooking without opening the door

Oven light

Stays on during the cooking process so you can observe your progress at a glance

Adjustable oven racks

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Baking tray included

Full-width porcelain tray for cooking convenience

Removable oven door

Door can be removed in a few simple steps as needed for full access of the interior and easier maintenance

Professional handle

Sleek handle in brushed stainless steel offers an attractive look that matches many popular styles of kitchen cabinetry

208-240V operation

Requires professional hardwired installation (cord not included)
