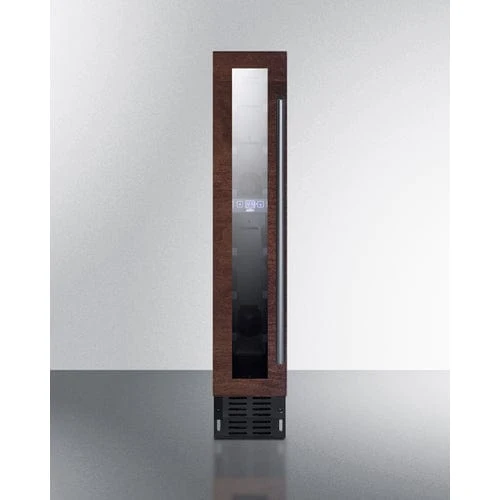

Summit SWC007H34PNRLHD 6" Wide Built-In Wine Cellar

This item has been discontinued click HERE to see the replacement.

The SWC007H34PNRLHD utilizes a front-breathing, compressor-based cooling system, ensuring that your wine is kept at the ideal temperature.

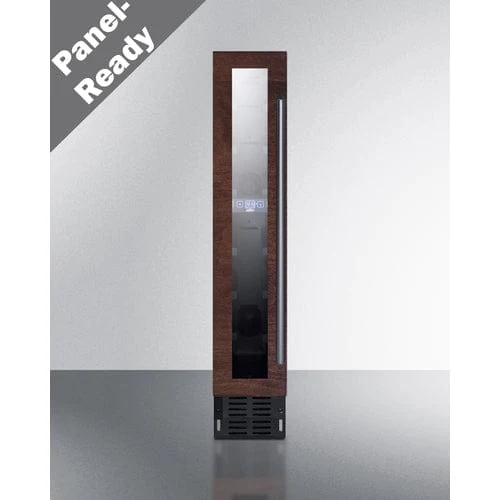

Panel-ready door trim lets you seamlessly integrate refrigerated wine storage into a 6" wide undercounter space

Summit lets you transform even the slimmest undercounter space into a fully functional wine cellar with our 6 inch wide SWC007H34PNR.

Designed for built-in installation, the SWC007H34PNRLHD features a front-breathing compressor-based cooling system to ensure proper wine temperature is maintained. The double pane tempered glass door comes with specialized hinging that lets you install your own custom panel over the frame, allowing you to match or complement surrounding cabinetry (panel dimensions: 28 1/8" H x 5 5/8" W at 3/4" thickness). This unit has a right angle plug and sealed rear for added space savings. For this unit with a right hand door swing, see model SWC007H34PNR.

Inside, the SWC007H34PNRLHD features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit at the touch of a button. The temperature can be set between 41 and 72ºF to suit red or white wine. Seven slots let you store wine bottles with ease. The floor is set at a slight angle, ideal for holding an open bottle. This unit is equipped with an open door and high temperature alarm for added assurance. The Sabbath mode setting allows you to disable certain electrical features during periods of observance. The commercial grade compressor operates quietly, keeping the sound levels under 34 dB.

With its innovative size and customizable design, the SWC007H34PNRLHD can be installed in virtually any space to bring reliable wine storage to kitchens, home bars, offices, walk-in closets, and more.

SPECIFICATIONS

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.75" (86 cm)
Nominal Width	6.0" (15 cm)
Width	5.88" (15 cm)
Nominal Depth	21.0" (53 cm)
Depth	20.75" (53 cm)
Depth with Handle	22.38" (57 cm)
Depth with door at 90°	25.5" (65 cm)
Bottles	7 bottles
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	40.0 lbs. (18 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101146782
Wine Cellar
Number of Zones	1
Door Swing	LHD
Height Adjustable	Yes
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.57 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	25.75" (65 cm)
Interior Width 1	3.5" (9 cm)
Interior Depth 1	14.25" (36 cm)
Compressor Step Width	3.5" (9 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	4
Temperature Range	41 to 72ºF
Sabbath Mode	Yes
Sound Level	33.8 dB

AVAILABLE UPGRADES

Door
T1 Door Tint T1S Door Tint T2 Door Tint T3 Door Tint T4 Door Tint

FEATURES

Built-In Wine Cellar

Single zone wine cellar sized for built-in installation in 6" wide spaces

Panel-ready door trim

Specialized hinges allow you to install an overlay panel over the door trim to create a custom look that matches adjacent cabinetry (panel size: 28 1/8" H x 5 5/8" W at 3/4" thickness)

Slim 6 inch width

Uniquely slim fit lets you transform extra cabinet space into a 7-bottle wine storage center

Designed for built-in use

Make the best use of space by installing your appliance under the counter

Commercial design

Meets UL-471 commercial standards

Height adjustable

Leveling legs can be adjusted to raise the height up to 34.25" for an appropriate fit under standard counters

Glass door

Double pane tempered glass provides a full display of your collection

Digital thermostat

Electronic controls for precise temperature management

7 bottle capacity

Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well

Open bottle storage

The floor slight is slightly angled, allowing you store one bottle that has been uncorked at a gentle tilt

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Provides an attractive and efficient bottle display

Automatic defrost

Reduced maintenance and steady temperature performance

Fan-forced cooling

Interior fan helps to ensure the temperature is evenly distributed

Open door alarm

Audible alarm will sound if the door is left ajar for over 60 seconds

High temperature alarm

If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature memory function

Unit will retain last temperature settings in the event of a power failure

Right angle plug

Flat design offers added space savings by requiring no extra depth to plug the unit in

Flush back

Space saving design with easier cleanability

Kickplate extender included

Includes an extra kickplate to cover up the leveling legs if the unit's height is raised

Quiet operation

Runs at under 34 dB for a quiet performance in any setting

Quality storage

Compressor-based operation to ensure reliable temperature performance

Left hand door swing

For this unit with the door opening from the other side, see model SWC007H34PNR

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
