Summit SWC008PNRLHD | 6" Wide Built-In Wine Cellar

Summit lets you transform even the slimmest undercounter space into a fully functional wine cellar with our 6 inch wide SWC008PNR.

Designed for built-in installation, the SWC008PNRLHD features a front-breathing compressor-based cooling system to ensure proper wine temperature is maintained. The stainless steel door features a European-style fully articulating hinge for zero clearance opening.  We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (recommended panel size: 30" H x 5 3/4" W; maximum weight: 10 lbs.). The door is fully finished with a seamless stainless steel trim over a glass window, giving you the option to keep the look if preferred. This unit has a right angle plug and sealed rear for added space savings. It ships with a left hand door swing.

Inside, the SWC008PNRLHD features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit. The temperature can be set between 41 and 72ºF to suit red or white wine. Seven slots let you store wine bottles with ease. The floor is set at a slight angle, ideal for holding an open bottle. This unit is equipped with an open door and high temperature alarm for added assurance. The Sabbath mode setting allows you to disable certain electrical features during periods of observance. The commercial grade compressor operates quietly, keeping the sound levels under 34 dB.

With its innovative size and customizable design, the SWC008PNRLHD can be installed in virtually any space to bring reliable wine storage to kitchens, home bars, offices, walk-in closets, and more.

SPECIFICATIONS

Overview

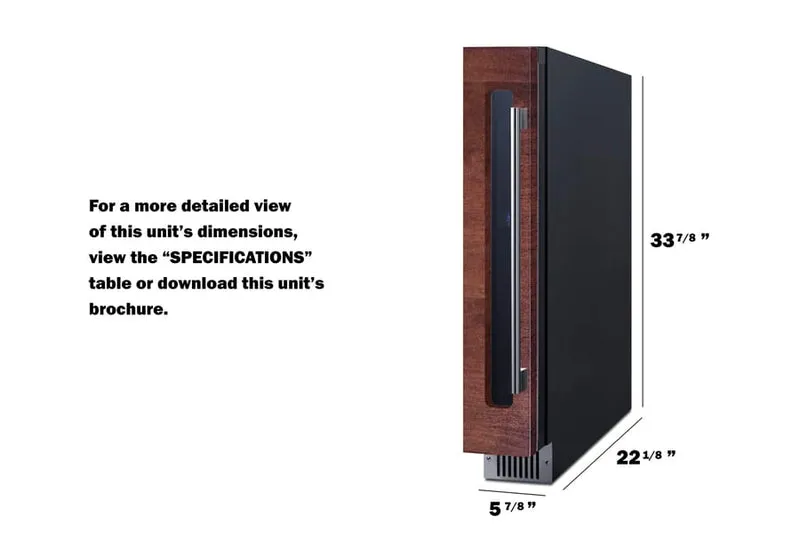

Nominal Height	34.0" (86 cm)
Height of Cabinet	33.88" (86 cm)
Nominal Width	6.0" (15 cm)
Width	5.88" (15 cm)
Nominal Depth	22.0" (56 cm)
Depth	22.13" (56 cm)
Depth with Panel	22.88" (58 cm)
Depth with door at 90°	28.63" (73 cm)
Bottles	7 bottles
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	44.0 lbs. (20 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101161235
Wine Cellar
Number of Zones	1
Door Swing	LHD
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.57 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	25.88" (66 cm)
Interior Width 1	3.5" (9 cm)
Interior Depth 1	14.25" (36 cm)
Compressor Step Height	3.0" (8 cm)
Compressor Step Width	3.5" (9 cm)
Compressor Step Depth	6.0" (15 cm)
Temperature Range	41 to 72ºF
Sabbath Mode	Yes
Sound Level	33.8 dB

AVAILABLE UPGRADES

Door
T4 Door Tint T3 Door Tint T2 Door Tint T1S Door Tint T1 Door Tint

FEATURES

6" Wide Built-In Wine Cellar

Single zone wine cellar sized for built-in installation in 6" wide spaces

Customizable look

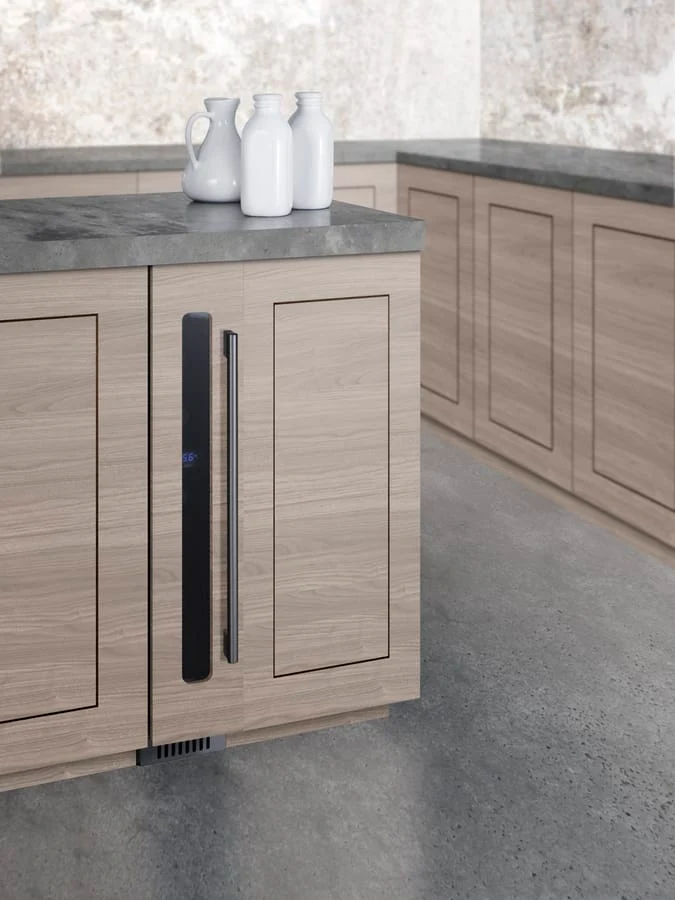

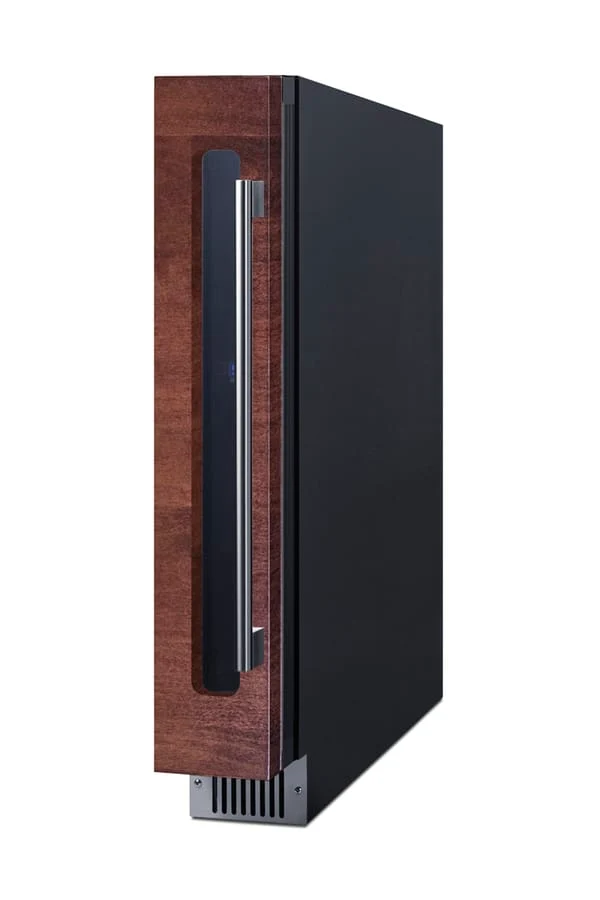

Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen

Easy panel installation with included 2-piece bracket kit

Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 5 3/4 W with a 3 1/4" inner frame)

Flexible style

Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of a stainless steel trimmed door

Fully articulating hinge

European style hinge design ensures a flush fit and allows for a smoother opening

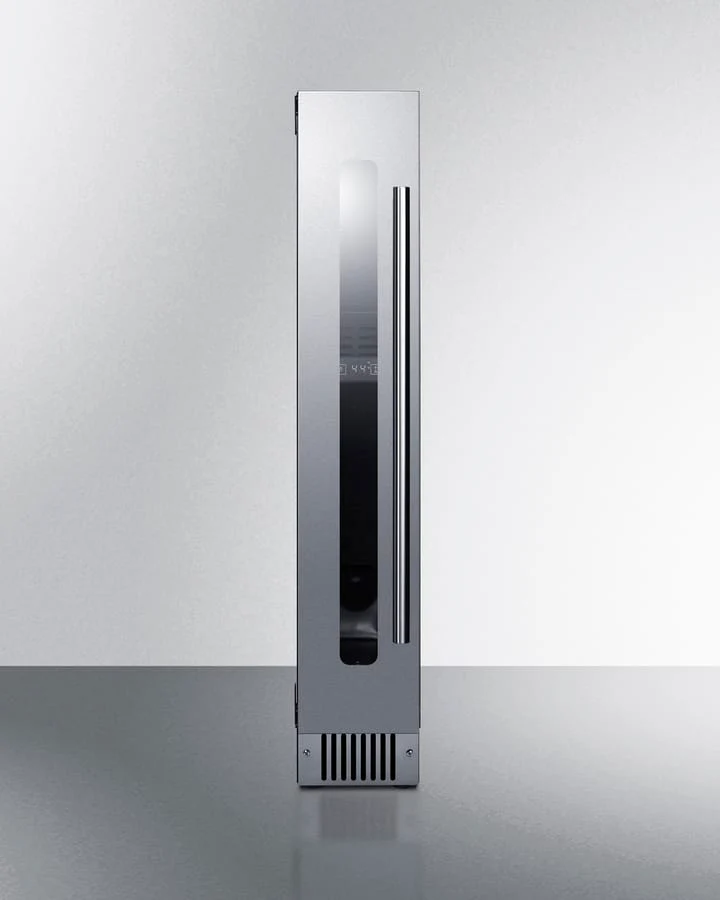

Seamless stainless steel door trim

Single-piece stainless steel door trim frames the window for a premium look

Slim 6 inch width

Uniquely slim fit lets you transform extra cabinet space into a 7-bottle wine storage center

Designed for built-in use

Make the best use of space by installing your appliance under the counter

Commercial grade design

Meets UL-471 commercial standards

Unbranded exterior

Allows for seamless integration with other appliances

Glass door

Double pane tempered glass provides a full display of your collection

Digital thermostat

Electronic controls for precise temperature management

7 bottle capacity

Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well

Open bottle storage

The floor slight is slightly angled, allowing you store one bottle that has been uncorked at a gentle tilt

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Provides an attractive and efficient bottle display

Automatic defrost

Reduced maintenance and steady temperature performance

Fan-forced cooling

Interior fan helps to ensure the temperature is evenly distributed

Open door alarm

Audible alarm will sound if the door is left ajar for over 60 seconds

High temperature alarm

If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature memory function

Unit will retain last temperature settings in the event of a power failure

Right angle plug

Flat design offers added space savings by requiring no extra depth to plug the unit in

Flush back

Space saving design with easier cleanability

Stainless steel kickplate

Complete luxury down to the toe kick

Quiet operation

Runs at under 34 dB for a quiet performance in any setting

Quality storage

Compressor-based operation to ensure reliable temperature performance

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
