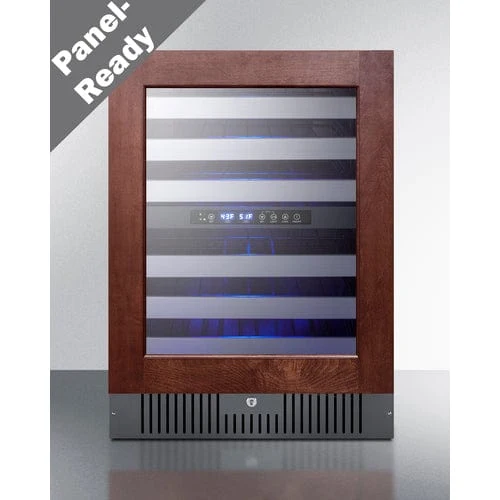

Summit SWC532BLBISTPNRLHD | 24" Wide Built-In Wine Cellar

Panel-ready door trim lets you customize your unit for the perfect look

Summit's extensive selection of built-in undercounter commercially approved wine cellars includes elegant choices that let you achieve a custom look ideal for any space.

The SWC532BLBISTPNRLHD is a dual zone wine cellar sized for 24" spaces. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The panel-ready door features our fully articulating European style hinging, with a 2-piece bracket kit included to allow easy installation of your own custom door trim to match or blend into adjacent cabinetry. A factory-installed lock offers added security and a stainless steel kickplate completes the look.

Inside, the SWC532BLBISTPNRLHD is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.

This unit is ETL-S listed to NSF-7 commercial standards. With its advanced user features and versatile design, the SWC532BLBISTPNRLHD makes a great addition to any ADA compliant setting looking to store wine in modern style. Additional panel-ready wine cellars are available in more sizes (including shallow depth). Explore the full Summit line to discover the perfect choice for your space.

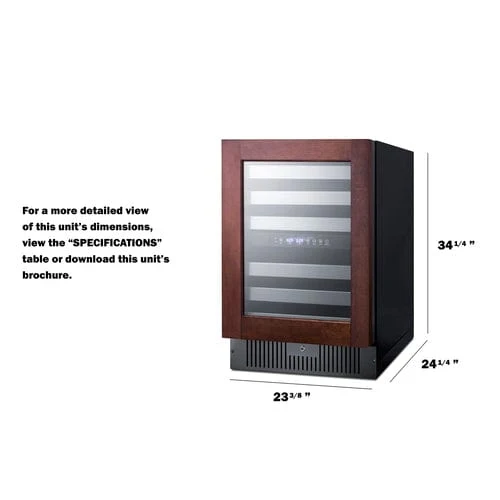

SPECIFICATIONS

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	34.25" (87 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	47.38" (120 cm)
Bottles	46 bottles
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	113.0 lbs. (51 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101101552
Wine Cellar
Number of Zones	2
Door Swing	LHD
Shelf Type	Wire
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	11.63" (30 cm)
Interior Width 1	20.5" (52 cm)
Interior Depth 1	18.0" (46 cm)
Compressor Step Depth	6.0" (15 cm)
Level Legs	2
Temperature Range	41 to 64ºF
Interior Height 2	11.88" (30 cm)
Interior Width 2	20.5" (52 cm)
Interior Depth 2	18.0" (46 cm)

AVAILABLE UPGRADES

Door
T4 Door Tint T3 Door Tint T2 Door Tint T1S Door Tint T1 Door Tint

FEATURES

24" Dual Zone Wine Cellar

Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones

Built-in capable

Front-breathing design allows this unit to be installed under counters

Panel-ready door trim

Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area

Flexible commercial grade shelving

Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving and offers a more versatile fit for a variety of bottles

Full-extension shelving

Shelves move smoothly on ball-bearing glides for easier loading and unloading

Two temperature zones

Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

Digital control panel

Easy temperature management with electronic controls located inside

Versatile readout

Temperature viewable in Celsius or Fahrenheit

Automatic defrost

Reduced maintenance with auto defrost system

Double pane tempered glass door

Provides a full display of the interior, with two levels of glass for added protection

Interior lighting

Recessed LED lighting in both compartments brings striking blue illumination to your collection

Factory installed lock

Keyed lock for secure interior, with two keys included

Fully articulating hinge

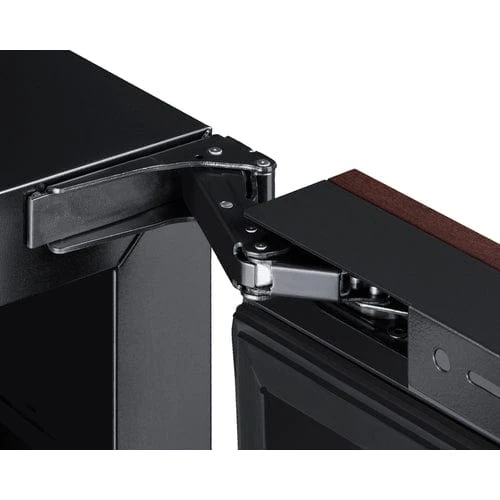

Smoother opening and a better fit with an integrated European style door hinge

Fully finished black cabinet

Allows the unit to be used freestanding

Commercially listed

ETL-S listed to NSF-7 Standards for use in commercial establishments

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
