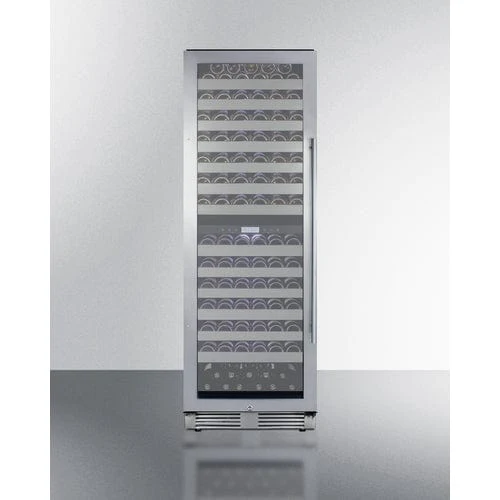

Summit SWCP2163CSSLH | 24" Wide Dual-Zone Wine Cellar

Luxury design built to NSF-7 standards for versatile use in residential or commercial settings

Summit offers a unique selection of built-in capable full-sized wine cellars with a versatile luxury design ideal for residential or commercial use

The SWCP2163CSSLHD is a 24" wide dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The upper zone is reserved for white and sparkling wine, while the lower zone features a warmer temperature range to best preserve reds. It features a front-breathing design for built-in installation, with a fully finished stainless steel cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The luxury exterior features a double pane tempered glass door with a seamless stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings. This unit comes with a left-hand door swing. (Note: the door is not user-reversible. For this unit with a right-hand door swing, see the SWCP2163CSS.)

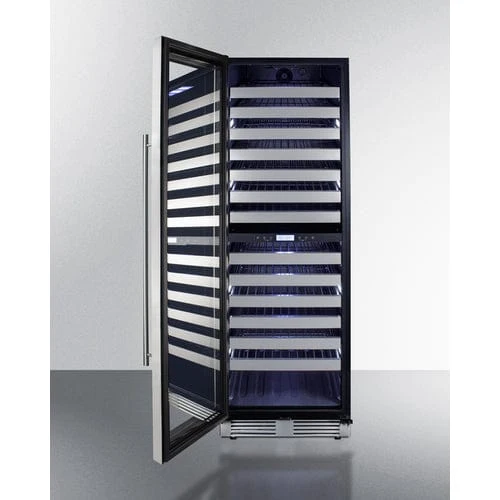

Inside, the SWCP2163CSSLHD includes 13 full-extension black wire shelves positioned on ball bearing glides for smooth loading. Stainless steel fronts offer a modern touch. Optimal storage capacity accommodates up to 163 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWCP2163CSS can hold up to 110 bottles. Nine white LED lights positioned on the sides and top of the unit attractively illuminate your collection for a stylish display. An internal fan ensures both zones are properly chilled, while a charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.

With its convenient size, advanced features, and luxury design, the SWCP2163CSSLHD is perfect for restaurants, bars, wineries, homes seeking full capacity wine storage with a modern presentation.

SPECIFICATIONS

Overview
Nominal Height	70.0" (178 cm)
Height of Cabinet	69.5" (177 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	27.0" (69 cm)
Depth	26.5" (67 cm)
Depth with Handle	28.25" (72 cm)
Depth with door at 90°	48.75" (124 cm)
Bottles	163 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	299.0 lbs. (136 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101079295
Wine Cellar
Number of Zones	2
Door Swing	LHD
Reversible	No
Shelf Type	Wire
Shelf Qty	13
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.76 oz.
High Side PSI	320.0
Low Side PSI	120.0
Interior Height 1	31.0" (79 cm)
Interior Width 1	20.38" (52 cm)
Interior Depth 1	21.0" (53 cm)
Level Legs	2
Temperature Range	41-54°F (upper zone); 54-65°F (lower zone)
Interior Height 2	29.75" (76 cm)
Interior Width 2	20.38" (52 cm)
Interior Depth 2	21.0" (53 cm)
Sound Level	34 dB

AVAILABLE UPGRADES

Door
T2F Door Tint T4F Door Tint T1SF Door Tint T3F Door Tint

FEATURES

Commercially approved

ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings

Built-in capable

Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)

Double pane tempered glass door

Provides a full display of the interior, with two levels of glass for added protection

Seamless stainless steel door frame

Single-piece door trim offers a more deluxe look

Two temperature zones

Chill white wine in the upper zone while preserving your reds at a warmer temperature below

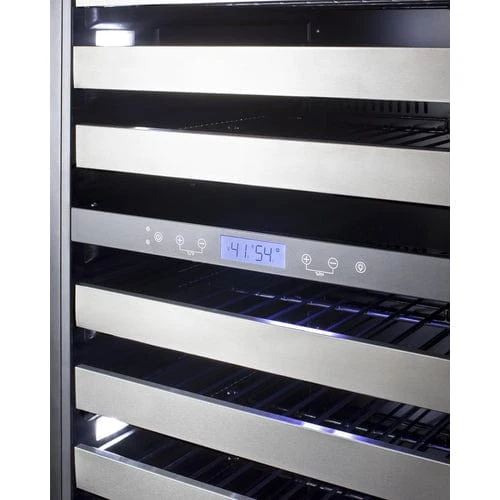

Digital thermostat

Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

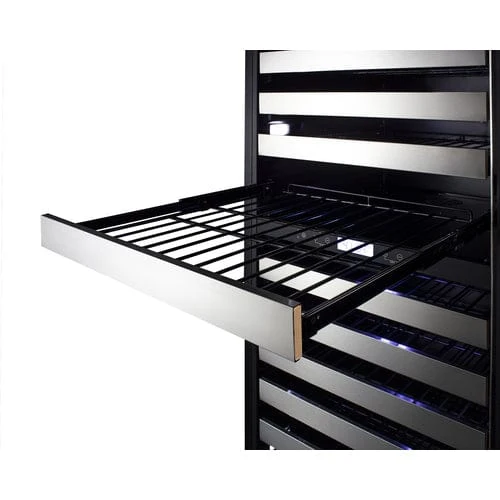

Full-extension wire shelving

13 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity

Stainless steel trimmed shelving

Fronts feature a stainless steel accent to elevate your presentation

Versatile storage

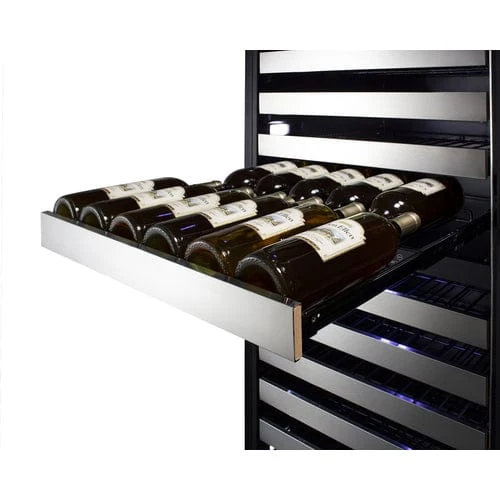

Interior can hold up to 163 standard 750ml Bordeaux style bottles (20 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (8 per shelf with 6 stacked on the slotted floor)

Professional handle

37" long handle in a brushed stainless look offers the perfect finish to your wine cellar

LED lighting

Nine LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue

Factory-installed lock

Keyed lock secures both zones (2 keys included)

Temperature range

Upper zone: 41-54°F ideal for chilling white and sparkling wine; Lower zone: 54-65°F for holding reds at a warmer temperature

Stainless steel kickplate

Allows for front ventilation in an elegant design

Charcoal filtration system

Helps to purify air for an odor-free interior

High/low temperature alarms

Audibly sounds if the interior rises or falls out of recommended range

Open door alarm

Alerts if unit door is ajar for more than 5 minutes

Magnetic door gasket

Ensures a tight seal for energy savings and improved performance

Sealed back

Flush back allows for a better fit and easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Left-hand door swing

This unit comes with a left-hand door swing. (Note: the door is not user-reversible; for a right-hand door swing, see the SWCP2163CSS)

CARB compliant

Uses environmentally friendly R600a refrigerant to comply with current regulations

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
