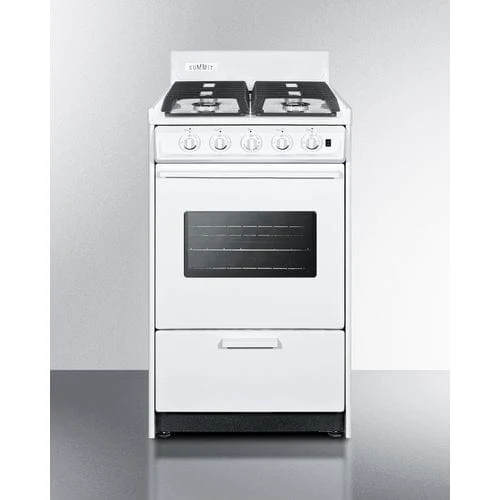

Summit WTM1107ISW | 20" Wide Gas Range, Sealed Burners

Made in the USA with sealed burners heavy duty cast iron grates

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

The WTM1107ISW is 20" wide apartment-sized gas range with a generous 2.46 cu.ft porcelain oven interior that can fit large trays. Two adjustable oven racks are included.  This unit includes an oven window and interior light with an on/off switch. The broiler is located below the oven in a drop-down compartment. Four sealed 9100 BTU gas burners accommodate most of your stovetop heating needs. Two sets of continuous cast iron grates are designed to hold up to heavy pots and pans. This unit features upfront push-to-turn knobs that let you adjust your cooking without reaching over hot burners. It utilizes an electronic ignition system for added safety.

The WTM1107ISW comes in a classic white finish. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts.

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 24", 30", and 36" wide fits. This unit ships ready for natural gas connections. To use with propane, add the Kit LP S2.

SPECIFICATIONS

Overview
Nominal Height	40.0" (102 cm)
Height of Cabinet	40.0" (102 cm)
Nominal Width	20.0" (51 cm)
Width	20.0" (51 cm)
Nominal Depth	24.0" (61 cm)
Depth	24.0" (61 cm)
Door	White
Cabinet	White
US Electrical Safety	CSA
Weight	135.0 lbs. (61 kg)
Parts & Labor Warranty	1 Year
UPC	761101152899
Gas Range
Ignition	Spark
LP Convertible	With Kit LP S2 Accessory
Oven Capacity	2.46 cu.ft
Cooktop Surface	Porcelain
Burner Type	Sealed
Number of Burners	4
Grate Material	Cast iron
Burner #1 BTU	9100.0
Burner #2 BTU	9100.0
Burner #3 BTU	9100.0
Burner #4 BTU	9100.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	16.0" (41 cm)
Oven Interior Depth	19.0" (48 cm)
Broiler Location	Below Oven

FEATURES

20" Wide Gas Range

Slim-fitting sealed burner gas stove with large oven

Made in the USA

Designed and constructed domestically

Slim 20 inch width

Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth

Shallower fit is ideal for L-shaped and galley kitchens

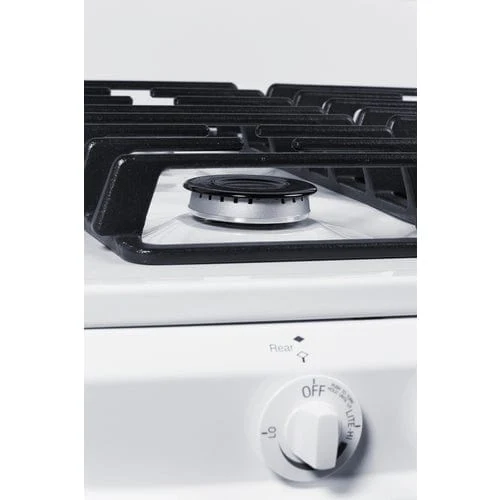

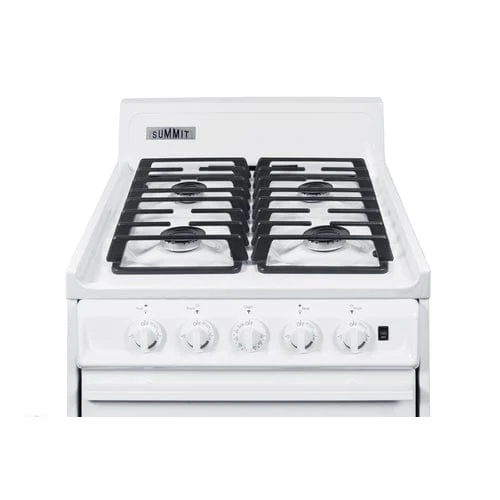

Cast iron grates

Two sets of continuous grates in heavy duty cast iron hold up to large cookware

Four sealed 9100 BTU burners

Easy cleanup on boil-overs and accidental spills

Designed for natural gas

Set for use with natural gas connection. To convert for propane use, add Kit LP S2

Electronic ignition

Spark ignition system with a pre-installed 115V 3-prong cord

Upfront oven/burner controls

Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust

Oven window and interior lighting

Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Recessed oven door

Smart design limits the depth and protects adjacent cabinets

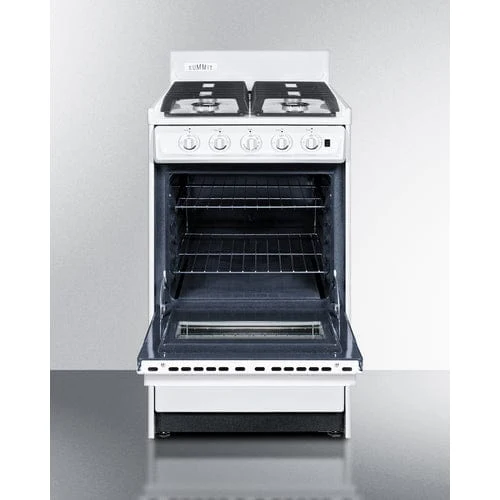

Adjustable oven racks

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler compartment

Lower drop-down compartment for separate broiling with even heat distribution

Porcelain construction

Oven interior features high quality porcelain construction for long-lasting durability, while the cooking surface is made from scratch resistant porcelain enamel

Removable burner caps

Burners include a removable cap for easy cleaning

Recessed surface

Smart design helps to contain spills

Removable oven door and range top

Allows for easier cleaning as needed

Broiler pan

Two-piece broiler pan included

White exterior finish

Classic design in a clean white finish to match any kitchen

Anti-tip bracket

Included for user installation to help prevent tipping
